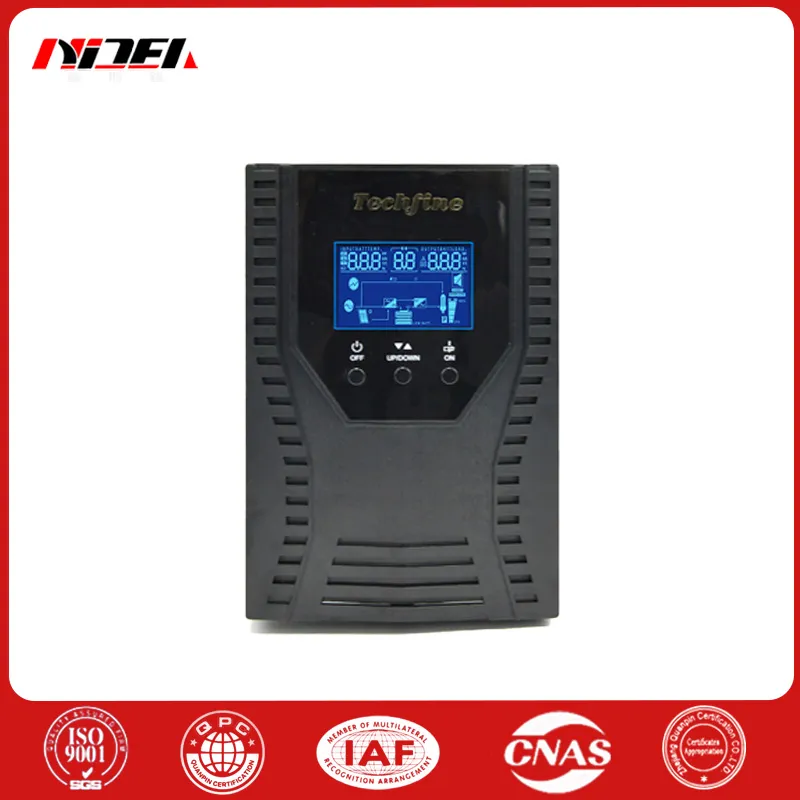

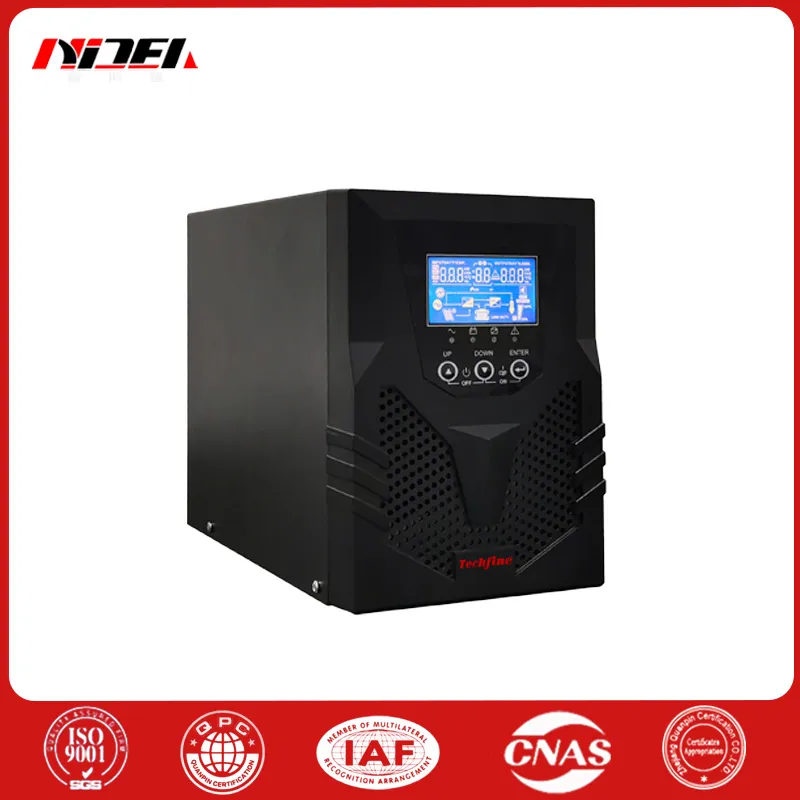

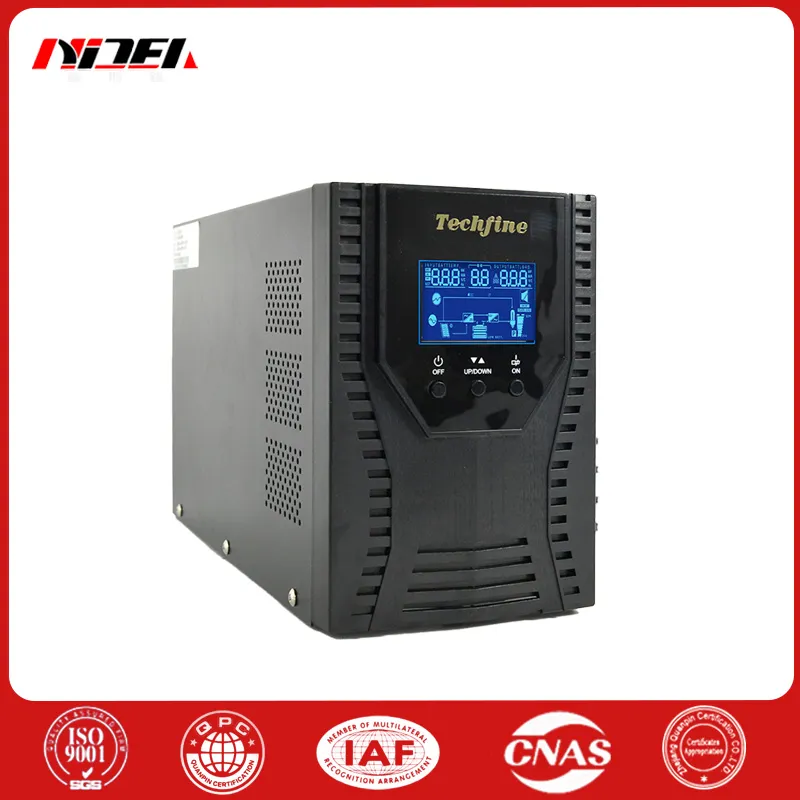

1 kVA Online High-Frequency Uninterruptible Power Supply DC 36V Sine Wave 1000va/800W, Without Battery, Long-Lasting Machine 1000W UPS Inverter

ModelWall-mounted typeVertical type1KVA2KVA3KVA1KVA2KVA3KVACapacity1KW2KW3KW1KW2KW3KWInputVoltageRangeMinimum switching voltageAt 50% load, 11OVAC +3%; at 100% load, 176VAC+3 %Minimum recovery voltageMinimum switching voltage +10VMaximum switching voltage300VACI3 %Maximum recovery voltageMaximum swi......Keywords:1 kVA Online High-Frequency Uninterruptible Power Supply DC 36V Sine Wave 1000va/800W, Without Battery, Long-Lasting Machine 1000W UPS Inverter, UPS, Power Inverter

Product Description

Model		Wall-mounted type			Vertical type
		1KVA	2KVA	3KVA	1KVA	2KVA	3KVA
Capacity		1KW	2KW	3KW	1KW	2KW	3KW
Input
Voltage Range	Minimum switching voltage	At 50% load, 11OVAC +3%; at 100% load, 176VAC+3 %
	Minimum recovery voltage	Minimum switching voltage +10V
	Maximum switching voltage	300VACI3 %
	Maximum recovery voltage	Maximum switching voltage -10V
Frequency Range		40-60HZ@50HZ system/50-70HZ@60HZ system
Phase		L+ N+PE
Power Factor		100% load z0.99
Output
Output Voltage		208/220/230/240VAC
Output Voltage Accuracy		I1%
Frequency Range (synchronization range)		40-60hz@50HZsystem/50-70HZ@60HZsystem
Frequency Range (battery mode)		50hz+0.1 HZor60HZ+0.1 HZ
Overload	AC Mode	30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@>150 %Ioad
	Battery Mode	10min@102%-110%Ioad, 1min@110%-130%load 10s@130%-150%Ioad, 500ms@> 150 %Ioad
Current peak ratio		3:1 (Maximum)
Harmonic distortion		2% ( linear load ) , 5%(non-linear load)
Switching time	Mains Battery	Oms
	Inverter Bypass	0ms
Effectiveness
AC Mode		95%
Battery Mode		94.8% (20pcs batteries)
Battery
Standard	Battery Number	2 pcs	4 pcs	6 pcs	2 pcs	4 pcs	6 pcs
	Charging Current	default 1A
	Charging Voltage	13.65 x NI1 %
Long Run	Battery Number	3 pcs	6 pcs	8 pcs	3 pcs	6 pcs	8 pcs
	Charging Current	Preset: 6A110%, 1-12A optional
	Charging Voltage	13.65x N*1%
Apperance

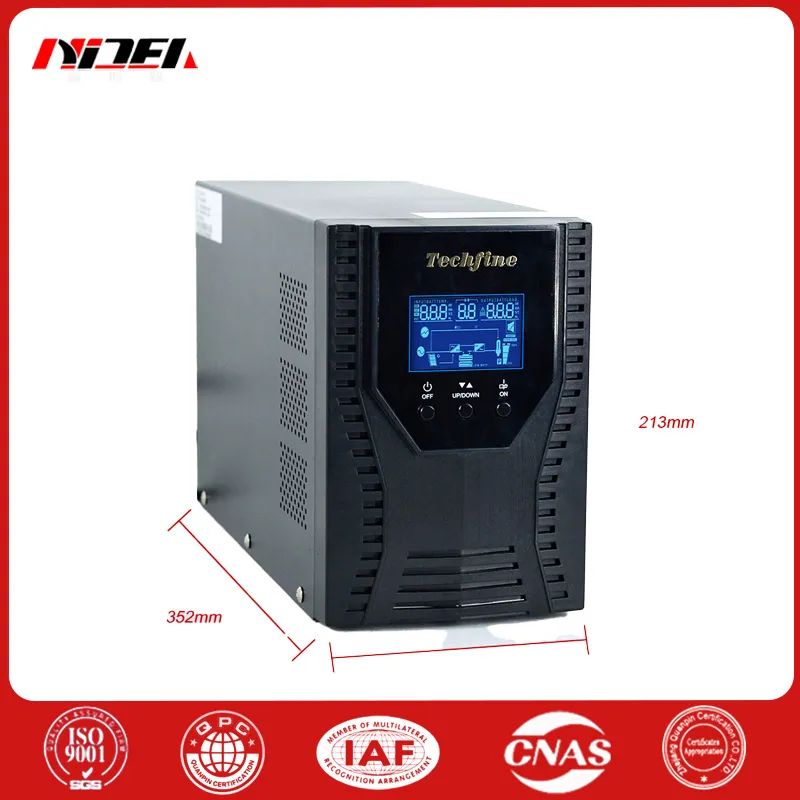

Standard	Size Long Width High(mm)	310"438"88	380"438"88	506"438"88	284"145"213	398"145"213	450"192"335
Long Run	Size Long Width High(mm)	310"438"88	380"438"88	380"438"88	284"145"213	398"145"213	398"145"213
Environment
Operating Temperature		0-40°C
Operating Moisture		< 95%And no condensation
Operating Altitude		< 1000m""
Noise		less than 50dB@1Meter
Management
SmartRS-232		Suppon Windows@2000/2003/XP/Vista/2008. Windows@7/8, Linux. Unix and MAC
Optional SNMP		Support for power management by SNMP administrator and web browser.

FAQ

Q: Are you a factory or a trading company?
A: We are a factory with a 10 year production and sales history in AC/DC power supply, uninterruptible power supply. We warmly welcome your visit.

Q: What is the delivery time?
A: Generally, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate on this.

Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 1 set. The minimum order quantity for individual UPS is 10

Q: How long is your warranty period?
A: We provide customers with a 2-year warranty and a 1-year warranty.

Q: Can you provide customized services?
A: Yes. Since 20014, we have been involved in OEM and ODM projects.
So that we can provide professional customized services for our customers.

Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.

Q: Do you conduct testing after completing production?
A: Yes, our production engineer team will conduct testing upon completion of the goods, and we will provide the testing information to customers for reference before delivery.
