| model | HDL-F800W | HDL-F1KW | HDL-F1.5KW | HDLU-2KW | HDLU-3KW | ||||
| Inverse mode | |||||||||
| Rated battery voltage | 12VDC | ||||||||
| output rating | 800W | 1000W | 1500W | 2000W | 3000W | ||||
| peak power | 2400W | 3000W | 45000W | 6000W | 9000W | ||||
| open circuit losses | 10W | 12W | 13W | 13W | 14W | ||||
| Rated output voltage | 220VAC±5% | ||||||||
| Rated output frequency | 50HZ±1HZ | ||||||||
| Output wave type | pure sine wave | ||||||||
| power factor | ≤1.0 | ||||||||
| The AC-DC conversion time | ≤8ms | ||||||||
| switching relay | 40A | ||||||||
| Battery conversion efficiency | ≥85% | ||||||||
| Overtemperature protection | The temperature reaches 50ºC fan turn. Temperature protection above 80ºC | ||||||||
| short-circuit protection | Short circuit automatic shutdown | ||||||||
| overload protection | 110% load <125%, continuous instantaneous shutdown protection factory default, can be changed according to customer needs | ||||||||
| 150% load, instant shutdown protection can be changed according to customer needs | |||||||||
| The market power model | |||||||||
| Wide input voltage range | 90-265VAC | ||||||||
| frequency range | 45-54HZ | ||||||||
| charge efficiency | 95% | ||||||||
| Municipal electricity input | Enter the market electricity automatic charging boot | ||||||||
| High current charging | 14.2V±0.5VDC (Default setting) | ||||||||
| Heng charge voltage | 14.2±0.2VDC (Default setting) | ||||||||
| floating charge voltage | 13.8±0.2VDC (Default setting) | ||||||||
| charging current | 0-60A (default 30A), 3KW 0-100A (default 80A) users can manually design the LCD panel | ||||||||
| Temperature compensation coefficient | 4mV/ºC/cell | ||||||||
| Applicable battery | Lead-acid batteries, lithium batteries, colloidal batteries, etc. (by default, the second case represents lithium batteries and lead-acid maintenance-free batteries) | ||||||||
| Battery underpressure protection | User can manually design the LCD panel (default setting: 10.5±0.2VDC) | ||||||||

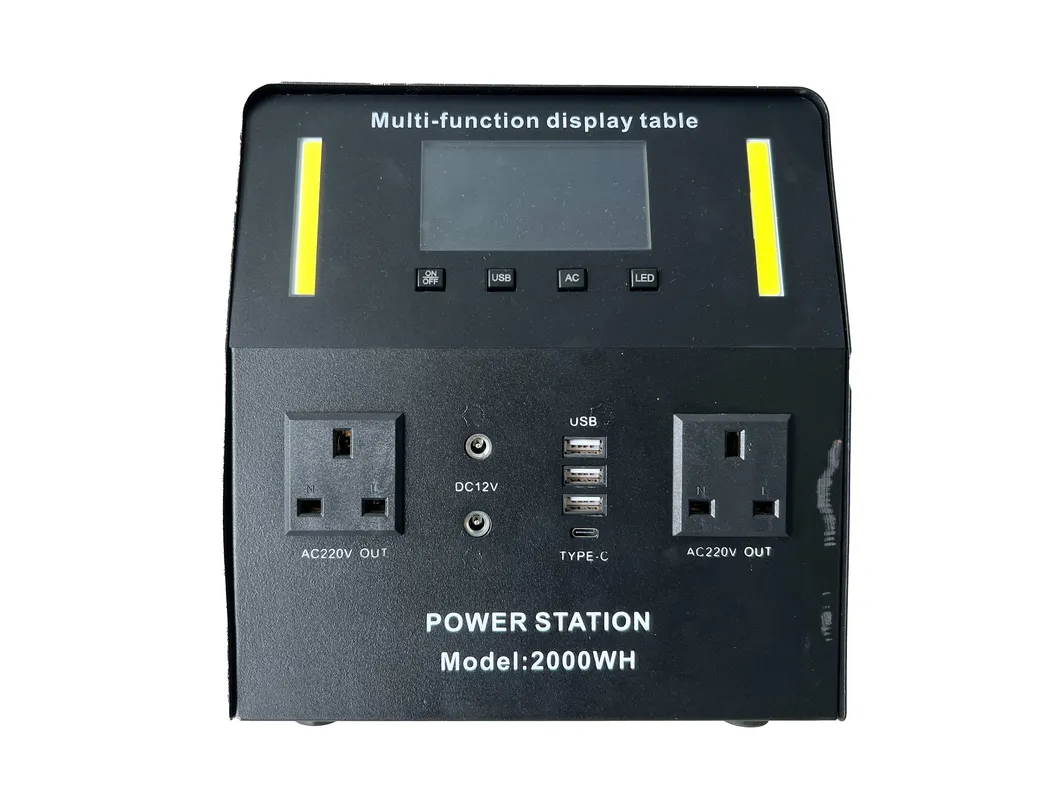

| display mode | LCD LCD | ||||||||
| Display content | Input / output voltage, frequency, load power and machine state, etc | ||||||||
| Handle interface | R232 communication: LCD LCD Handle \ LCD LCD screen Handle Full Chinese display LCD (optional) | ||||||||
| external switch | The ACC controls the switch machine | ||||||||
| Machine size (length * width * height mm) | 412*220*105 | 412*220*105 | 430*220*123 | 430(460)*184 (216))*180 |
430(460)*184 (216))*180 |
||||
| Packaging size (length * width * height mm) | 575*315*165 | 575*315*165 | 575*315*165 | 550*300*275 | 550*300*275 | ||||
| LCD LCD screen handle full Chinese display LCD LCD screen handle full Chinese display | |||||||||
| Inverse mode | Display the input voltage, output voltage, output power, temperature in the machine, auxiliary battery percentage, etc | ||||||||
| The market power model | Display the municipal voltage, the temperature in the machine, the charging state and percentage of the main and secondary batteries, etc | ||||||||
| set up | Battery type, battery undervoltage parameters, charging current, and dual battery control can be designed | ||||||||
| Fault display | Automatic fault problems (such as battery undervoltage, overload, etc.) | ||||||||
| Dual battery controller | (Optional) 200A 300A 500A | ||||||||
