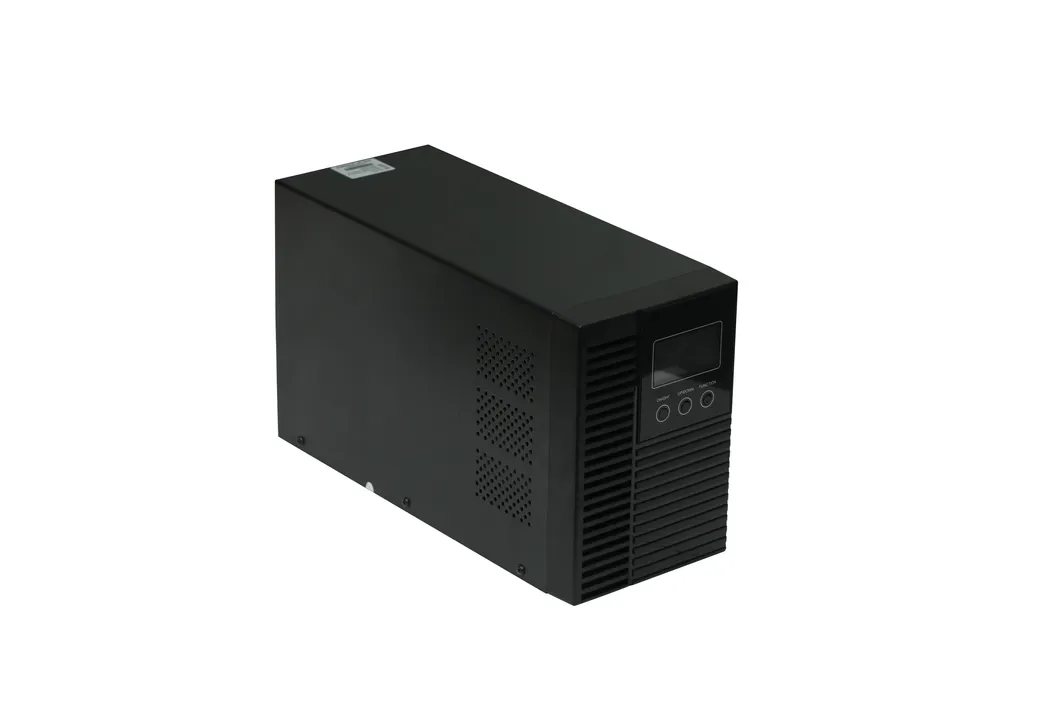

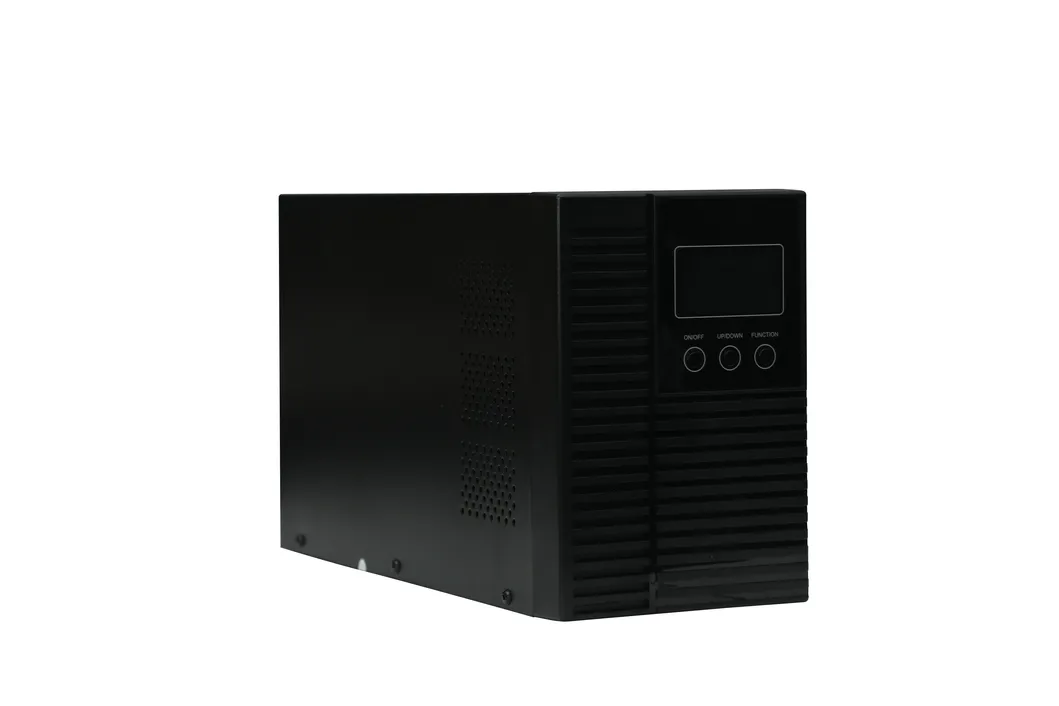

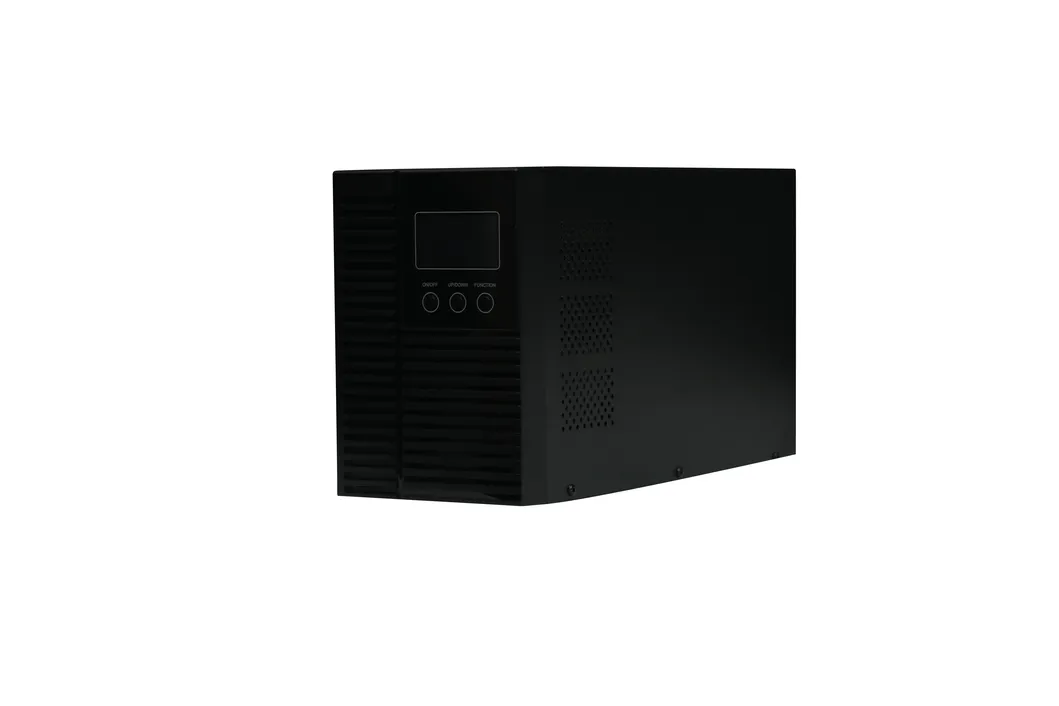

Enterprise LAN Uninterruptible Power Supply High Frequency UPS Double Conversion Online UPS Power 1kVA - 20kVA

Enterprise LAN Uninterruptible Power Supply High Frequency UPS Double Conversion Online UPS Power 1kVA - 20kVA

Key Feature:Zero Transfer timeTrue Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issuesDSP Digital Control BasedAdvance DSP base digital control bring high performance of high input Power factor, low distortion , supply the ......Keywords:Enterprise LAN Uninterruptible Power Supply High Frequency UPS Double Conversion Online UPS Power 1kVA - 20kVA, UPS, 10ah

Send Inquiry

Product Description

Key Feature:

Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues

DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply

Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of  90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life

Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application

Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

High Input power factor
Thanks to digital controlled  PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer

Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion

Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system


TECHNICAL SPECIFCATION
Tower Model S1K S1KL S2K S2KL S3K S3KL S6K S6KL S10K S10KL
Phase 1Phase  2Wire + PE
Capacity 1KVA/900W 2KVA/1.8KW 3KVA/2.7KW 6KVA/5.4KW 10KVA/9KW
Input
Nominal Input Voltage 110 / 115 / 120 / 127VAC or 220 / 230 /240VAC 220 / 230 / 240VAC
Input Voltage Range 110 / 115 / 120 / 127VAC:  60V~300V Halfload 176V~300V Full Load
220 / 230 / 240VAC: 90V~300V Halfload 176V~300V Full Load		 110V~300V Halfload 176V~300V Full Load
Input Frequency Range 40~70Hz
Input Power Factor 0.99 @Full load
Output
Output Voltage 230Vac(220 / 240 / 208V Selectable) or 120Vac (100 / 110 /115 / 127V  Selectable 230V(220 / 240 / 208V Selectable)
Output Voltage Regulation 1%
Output Frequency (Sync.Mode) 46Hz ~ 54Hz / 57Hz ~ 63Hz 46Hz ~ 54Hz / 56Hz ~ 64Hz
Output Frequency (Bat.Mode) 50Hz+ / -0.05Hz        60Hz+ / -0.05Hz
Output THDv% 2% Linear Load 6% Non-Linear Load 2% Linear Load 5% Non-Linear Load
Output Waveform Pure Sine Wave
Transfer Time
Line mode ↔ Bat Mode 0ms
Inv ↔ Bypass Mode <4ms
Efficiency
AC-->AC 89% 90% 91% >93%
ECO 94% 95% 96% >95%
Battery Mode 87% 88% 89% >90%
Battery & Charger
Battery Voltage/Capacity 2 * 12V/7AH 24V/36V External Battery 4 * 12V/7AH 48V/72V External Battery 6 * 12V/7AH 72V/96V External Battery 12 * 12V/7AH 144V/192V External Battery 16 * 12V/7AH 192V/240V External Battery
Battery Type Valve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery
Recharge Time ~5 Hours Subject to External Battery Config ~5 Hours Subject to External Battery Config ~5 Hours Subject to External Battery Config ~5 Hours Subject to External Battery Config ~5 Hours Subject to External Battery Config
Max Recharge Current 1.5A 6A 1.5A 6A 1.5A 6A 1.5A 4A 1.5A 4A
Floating Charge Votlage 27.3V 27.3V / 41.0V 54.6V 54.6V /81.8V 81.8V 81.8V/109.2V 163.8V 163.8V/218.4V 218.4V 218.4V/273V
HMI

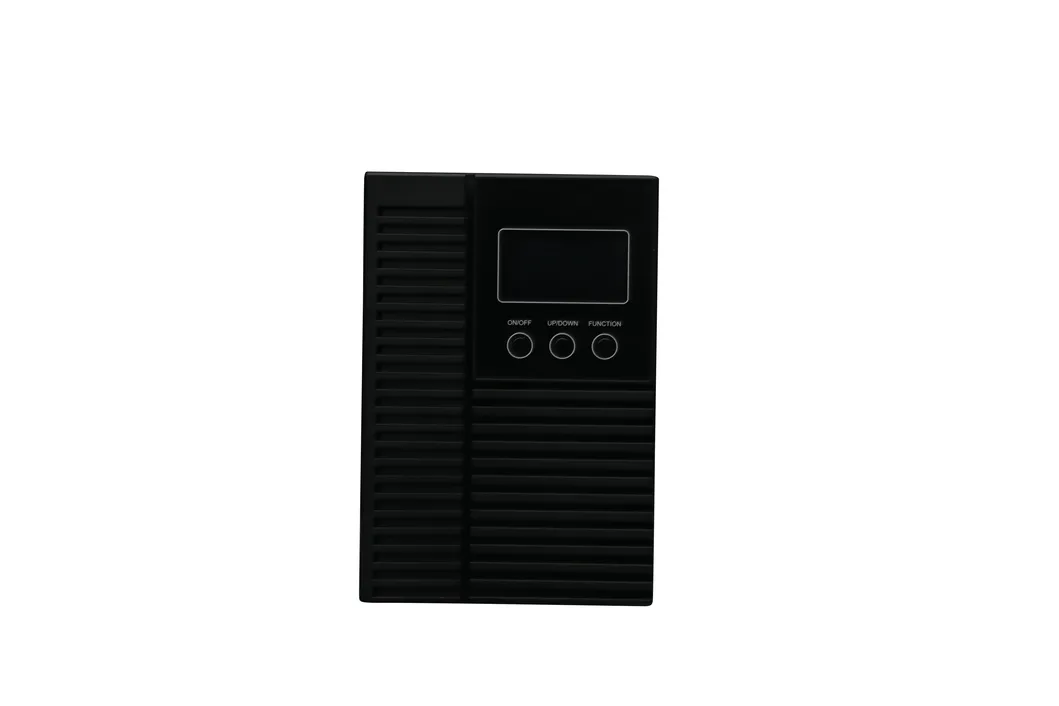

Display LED / LCD (Option)
Buzzer Alarm Bat.Mode / Bat.Low / OverLoad / Fault

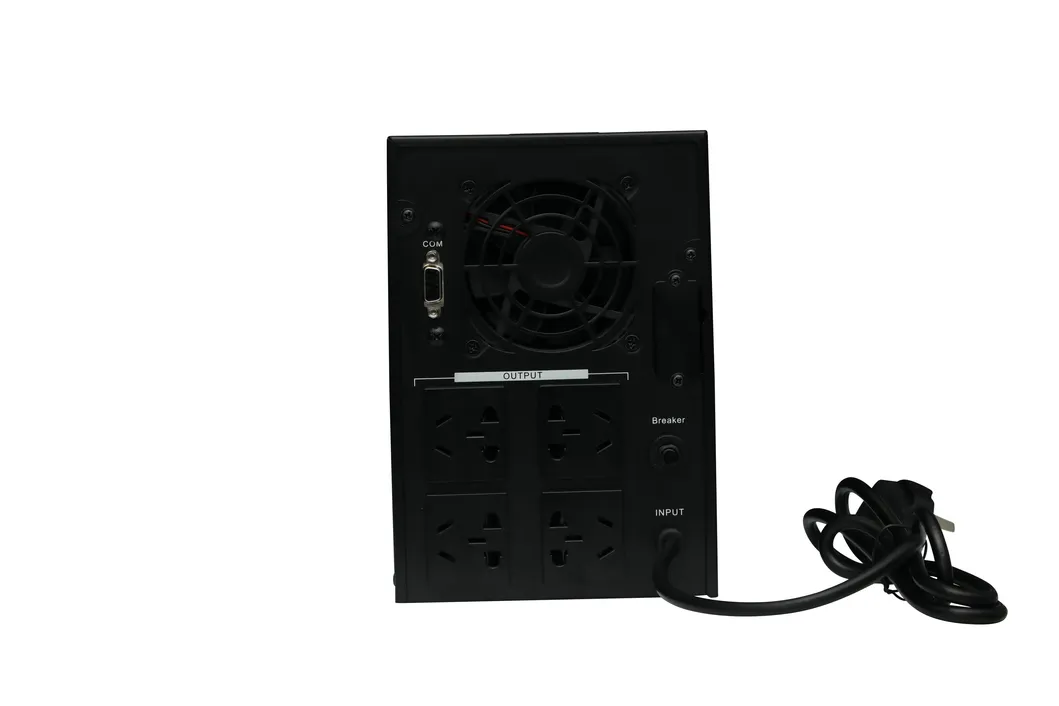

Communication Port RS232 / SNMP (Option)/ USB(Option)
Physical
Form Factor Tower
Dimension(Tower) - W*H*L(mm) 145*220*328 145*220*400 145*220*328 190*318*380 190*360*540 190*340*540 190*360*680 190*340*540
Weight(KG) 8.9 6.1 17.5 10.6 21.6 10.8 37 15.4 48 16
Environment
Humidity 5~97% (Non Condensing)
Operating Ambient Temperature 0~40oC
*External Battery Pack Rated Voltage Can Select Upon Order, 192 / 240V
*Product Specifications are Subject to Change Without Notice.
