High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W

High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W

ModelWall-mounted typeVertical type1KVA2KVA3KVA1KVA2KVA3KVACapacity1KW2KW3KW1KW2KW3KWInputVoltageRangeMinimum switching voltageAt 50% load, 11OVAC +3%; at 100% load, 176VAC+3 %Minimum recovery voltageMinimum switching voltage +10VMaximum switching voltage300VACI3 %Maximum recovery voltageMaximum swi......Keywords:High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W, UPS, Power Inverter

Send Inquiry

Product Description

Model Wall-mounted type Vertical type
1KVA 2KVA 3KVA 1KVA 2KVA 3KVA
Capacity 1KW 2KW 3KW 1KW 2KW 3KW
Input

Voltage
Range		 Minimum switching voltage At 50% load, 11OVAC +3%; at 100% load, 176VAC+3 %
Minimum recovery voltage Minimum switching voltage +10V
Maximum switching voltage 300VACI3 %
Maximum recovery voltage Maximum switching voltage -10V
Frequency Range 40-60HZ@50HZ system/50-70HZ@60HZ system
Phase L+ N+PE
Power Factor 100% load z0.99
Output
Output Voltage 208/220/230/240VAC
Output Voltage Accuracy I1%
Frequency Range
(synchronization range)		 40-60hz@50HZsystem/50-70HZ@60HZsystem
Frequency Range (battery mode) 50hz+0.1 HZor60HZ+0.1 HZ

Overload		 AC Mode 30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@>150 %Ioad
Battery Mode 10min@102%-110%Ioad, 1min@110%-130%load 10s@130%-150%Ioad, 500ms@> 150 %Ioad
Current peak ratio 3:1 (Maximum)
Harmonic distortion 2% ( linear load ) , 5%(non-linear load)
Switching time Mains  Battery Oms
Inverter Bypass 0ms
Effectiveness
AC Mode 95%
Battery Mode 94.8% (20pcs batteries)
Battery

Standard		 Battery Number 2 pcs 4 pcs 6 pcs 2 pcs 4 pcs 6 pcs
Charging Current default 1A
Charging Voltage 13.65 x NI1 %

Long Run		 Battery Number 3 pcs 6 pcs 8 pcs 3 pcs 6 pcs 8 pcs
Charging Current Preset: 6A110%, 1-12A optional
Charging Voltage 13.65x N*1%
Apperance
Standard Size

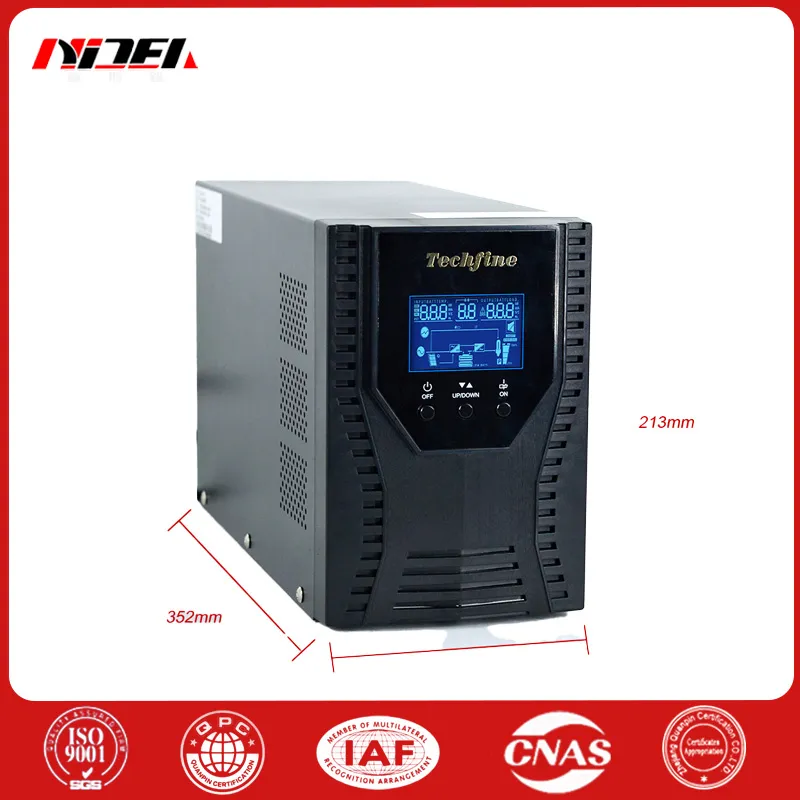

Long Width High(mm)		 310"438"88 380"438"88 506"438"88 284"145"213 398"145"213 450"192"335
Long Run Size
Long Width High(mm)		 310"438"88 380"438"88 380"438"88 284"145"213 398"145"213 398"145"213
Environment
Operating Temperature 0-40°C
Operating Moisture < 95%And no condensation
Operating Altitude < 1000m""
Noise less than 50dB@1Meter
Management
SmartRS-232 Suppon Windows@2000/2003/XP/Vista/2008. Windows@7/8, Linux. Unix and MAC
Optional SNMP Support for power management by SNMP administrator and web browser.

High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W

High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W
High-Frequency DC 36V Sine Wave UPS Power Supply 1000va/800W


FAQ

Q: Are you a factory or a trading company?
A: We are a factory with a 10 year production and sales history in AC/DC power supply, uninterruptible power supply. We warmly welcome your visit.

Q: What is the delivery time?
A: Generally, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate on this.

Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 1 set. The minimum order quantity for individual UPS is 10

Q: How long is your warranty period?
A: We provide customers with a 2-year warranty and a 1-year warranty.

Q: Can you provide customized services?
A: Yes. Since 20014, we have been involved in OEM and ODM projects.
So that we can provide professional customized services for our customers.

Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.

Q: Do you conduct testing after completing production?
A: Yes, our production engineer team will conduct testing upon completion of the goods, and we will provide the testing information to customers for reference before delivery.
