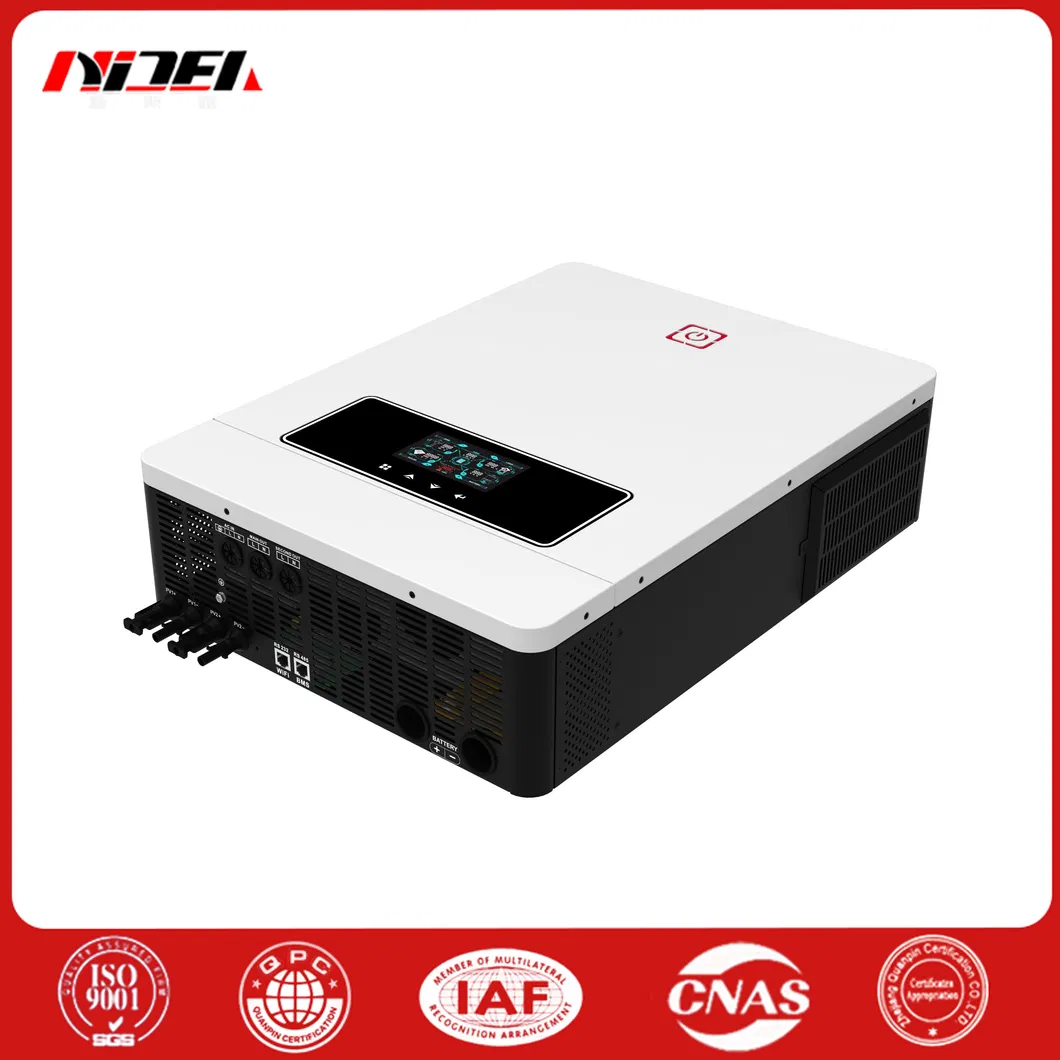

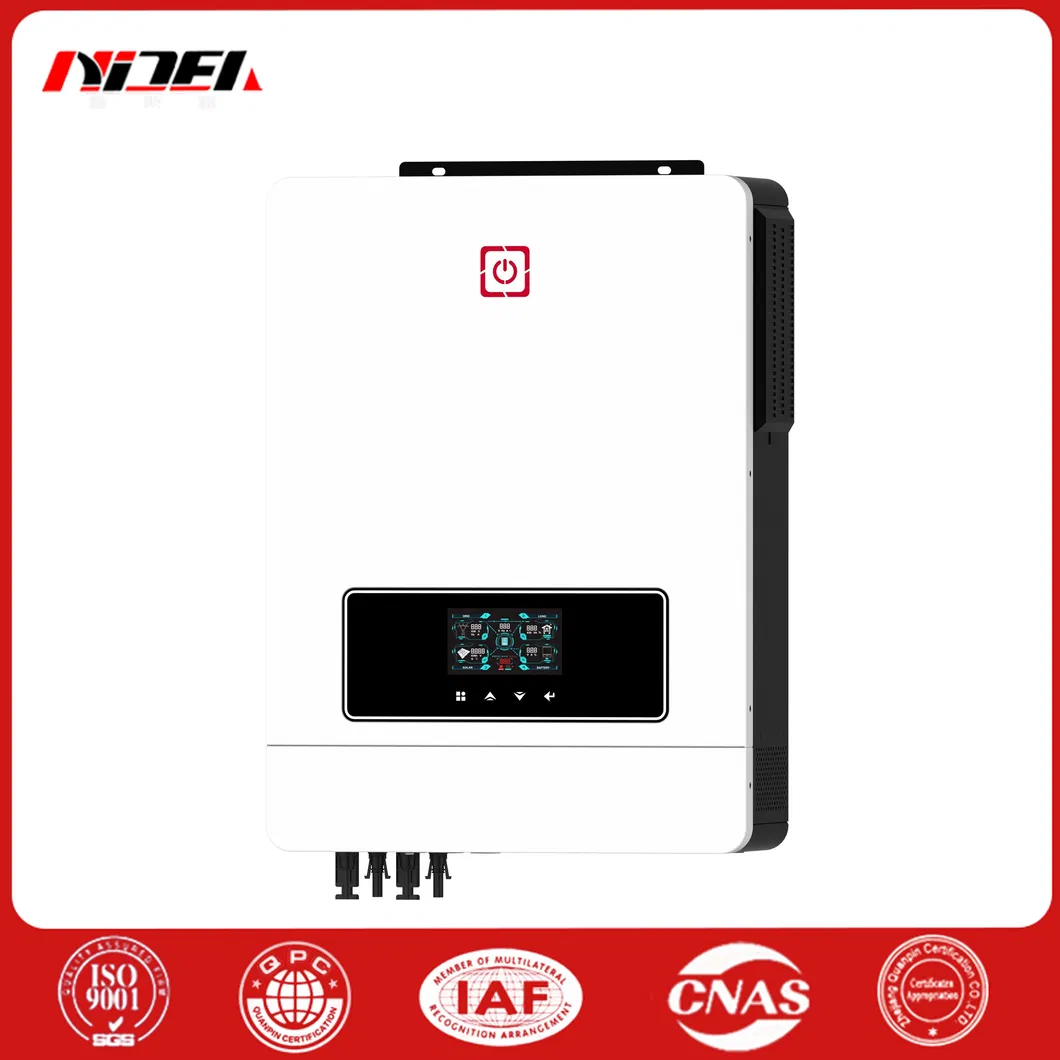

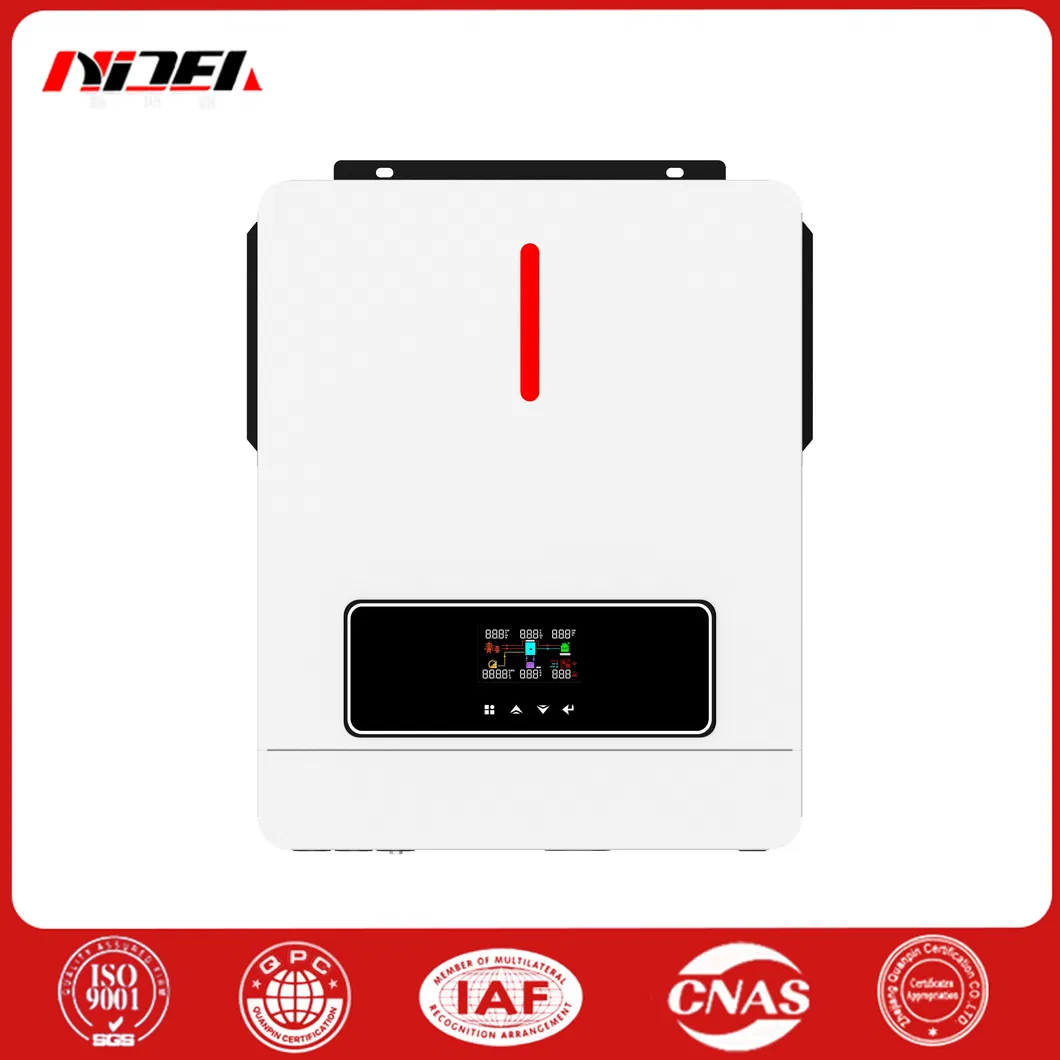

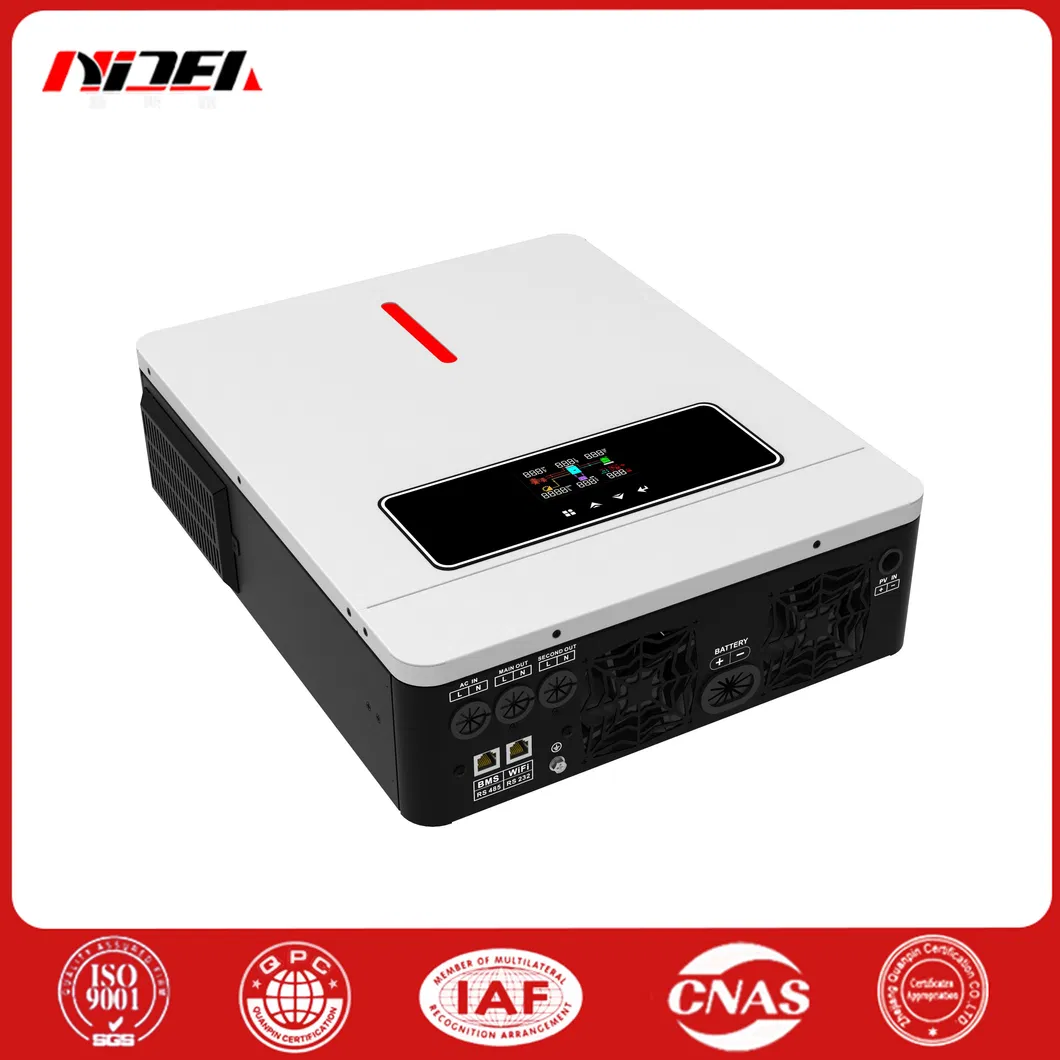

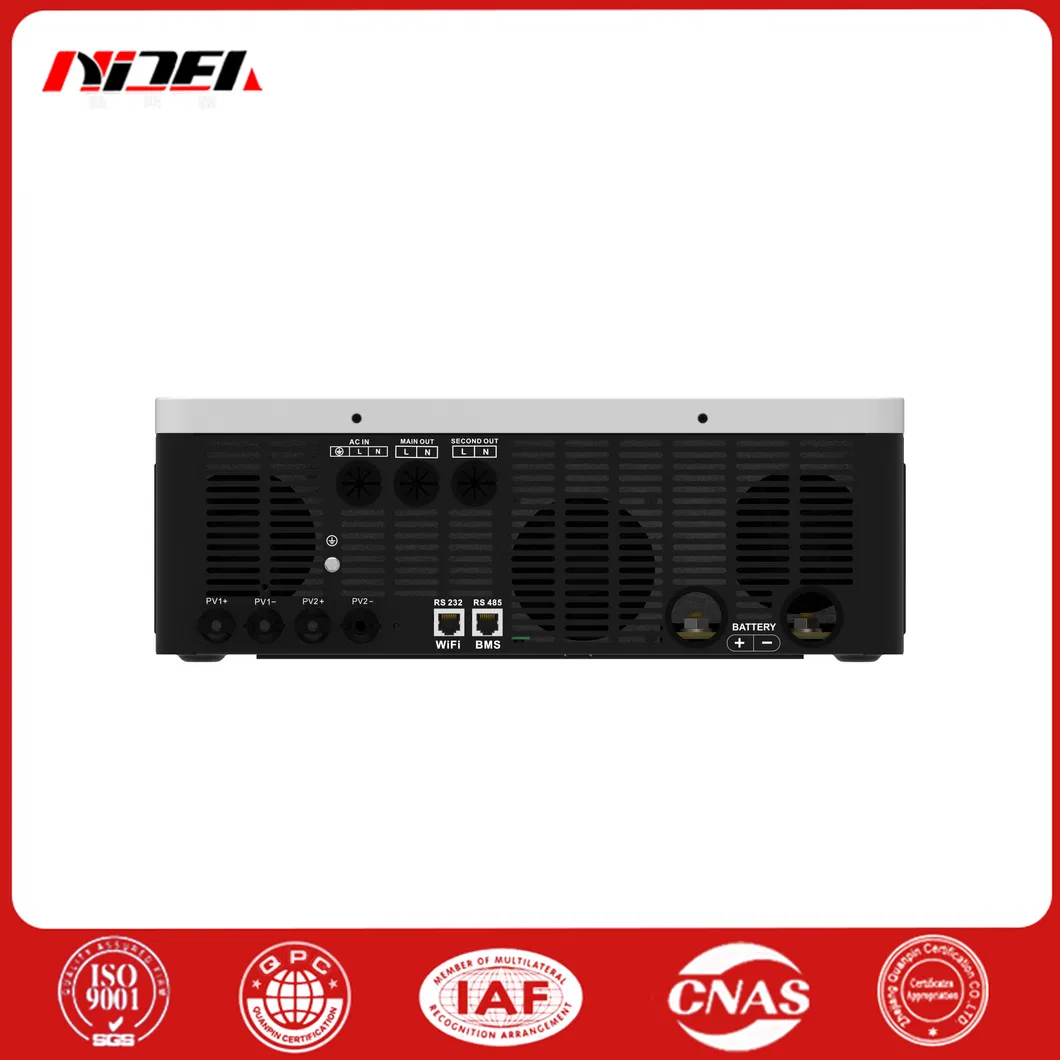

MAX-10.2KW household photovoltaic energy storage inverter
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and Android
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 160A MPPT solar charger(for 8.2kw,10.2kw)
Dual communication ports for Battery communication and Wifi communication
High PV input voltage range(90~500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual PV input
On Off Grid Work Mode
Pure sine wave output inverter
According to the requirements of load(household appliances/personal computers), the input voltage range of utility grid can beselected
According to the battery requirements,the charging current can be set through LCD ·Solar energy and utility grid can power loads at the same time
AC input is compatible with mains and generator
Automatic restart function when mains power is restored Overload/Over temperature/short circuit protection
The intelligent charging design of battery makes the battery more fully utilized
RS485 port Used for communication with BMS ·Cold startfunction
Built-in MPPT,operating voltage range 15V~60V,open circuit voltage 60Voc ·WIFI remote monitoring,Blue tooth near end sampling
Leakage current protection function
12V/24Vbattery adaptive,12V rated voltage can carry 2000W,24V rated voltage can cary 3500W One machine dual-use,the world's first of its kind
>Product Data Sheet
| MODEL |
VICTOR MAX-8.2KW |
VICTOR MAX-10.2KW |
| Phase |
1-phase |
| Maximum PV Input Power |
5400W+5400W |
| Rated Output Power |
8200W/8200VA |
10200W/10200VA |
| Maximum Solar Charging Current |
160A |
| GRID-TIE OPERATION |
|
| PV INPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| Start-up Voltage/nitial Feeding Voltage |
90VDC/120VDC |
| MPPT Voltage Range |
90~450VDC |
| Maximum Input Current |
2/18A |
| GRID OUTPUT(AC) |
|
| NominalOutput Voltage |
220/230/240VAC |
| Output Voltage Range |
195~253VAC |
| Nominal Output Current |
35.6A |
44.3A |
| Power Factor |
>0.99 |
| EFFICIENCY |
|
| Maximum Conversion Efficiency(DC/AC) |
98% |
| TWO LOAD OUTPUT POWER |
|
| Full Load |
8200W |
10200W |
| Maximum Main Load |
8200W |
10200W |
| Second Load Range |
1640W~5740W |
2040W~7140W |
| Maximum Load Cut Off Voltage |
52VDC |
| Maxmum Load Return Voltage |
54VDC |
| OFF-GRID OPERATION |
|
| AC INPUT |
|
| AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
| Acceptable Input Voltage Range |
90~280VACor 170~280VAC |
| Frequency Range |
50±1Hz/60±1Hz |
| MaximumAC input Current |
48.2A |
60A |
| PV INPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| MPPT Voltage Range |
90~450VDC |
| Maximum Input Current |
2/18A |
| BATTERY MODE OUTPUT(AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Wave Form |
Pure sine wave |
| Efficiency(DC to AC) |
94% |
| BATTERY&CHARGER |
|
| Nominal DC Voltage |
48VDC |
| Maximum Solar Charging Current |
160A |
| MaximumAC Charging Current |
140A |
| Maximum Sotar+AC Charging Current |
160A |
| HYBRID OPERATION |
|
| PV INPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| Start-up Voltage/lnitial Feeding Voltage |
90VDC/120VDC |
| MPPT Voltage Range |
90~450VDC |
| Maximum Input Current |
2/18A |
| GRID OUTPUT(AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Voltage Range |
195~253VAC |
| Nominal Output Current |
35.6A |
44.3A |
| AC INPUT |
|
| AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
| Acceptable Input Voltage Range |
90-280VACor 170-280VAC |
| MaximumAC Input Current |
48.2A |
60A |
| Maximum Charging Current |
140A |
| GENERAL |
|
| PHYSICAL |
|
| Dimension,H*W*D(mm) |
500*390*136 |
| Cartoon Dimension,H*W*D(mm) |
588*463*205 |
| Net Weight(kgs) |
14.5 |
14.7 |
| Gross Weight(kgs) |
16.1 |
16.2 |
| INTERACE |
|
| Communication Port |
RS232/RS485/WIFI/GPRS/LITHIUM BATTERY |
| ENVIRONMENT |
|
| Humidity |
5%to 95%Relative Humidity(Non~condensing) |
| Operating Temperature |
-10ºC~50ºC |
| STANDARD |
|
| Compliance Safety |
CE |
FAQ
Q: Are you a factory or a trading company?
A: We are a factory with a production and sales history of 10 years for AC/DC power supplies, photovoltaic inverters, and uninterruptible power supplies. We warmly welcome your visit.
Q: When is the delivery time?
A: Generally speaking, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate.
Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 10 units.
Q: How long is your warranty period?
A: We provide customers with a 2-year warranty
Q: Can you provide customized services?
A: yes. We have been involved in OEM and ODM projects since 2001.
Only in this way can we provide professional customized services to our clients.
Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.
Q: Do you conduct testing after production is completed?
A: Yes, our production engineering team will conduct testing after the goods are completed, and we will provide testing information to the customer for reference before delivery.
