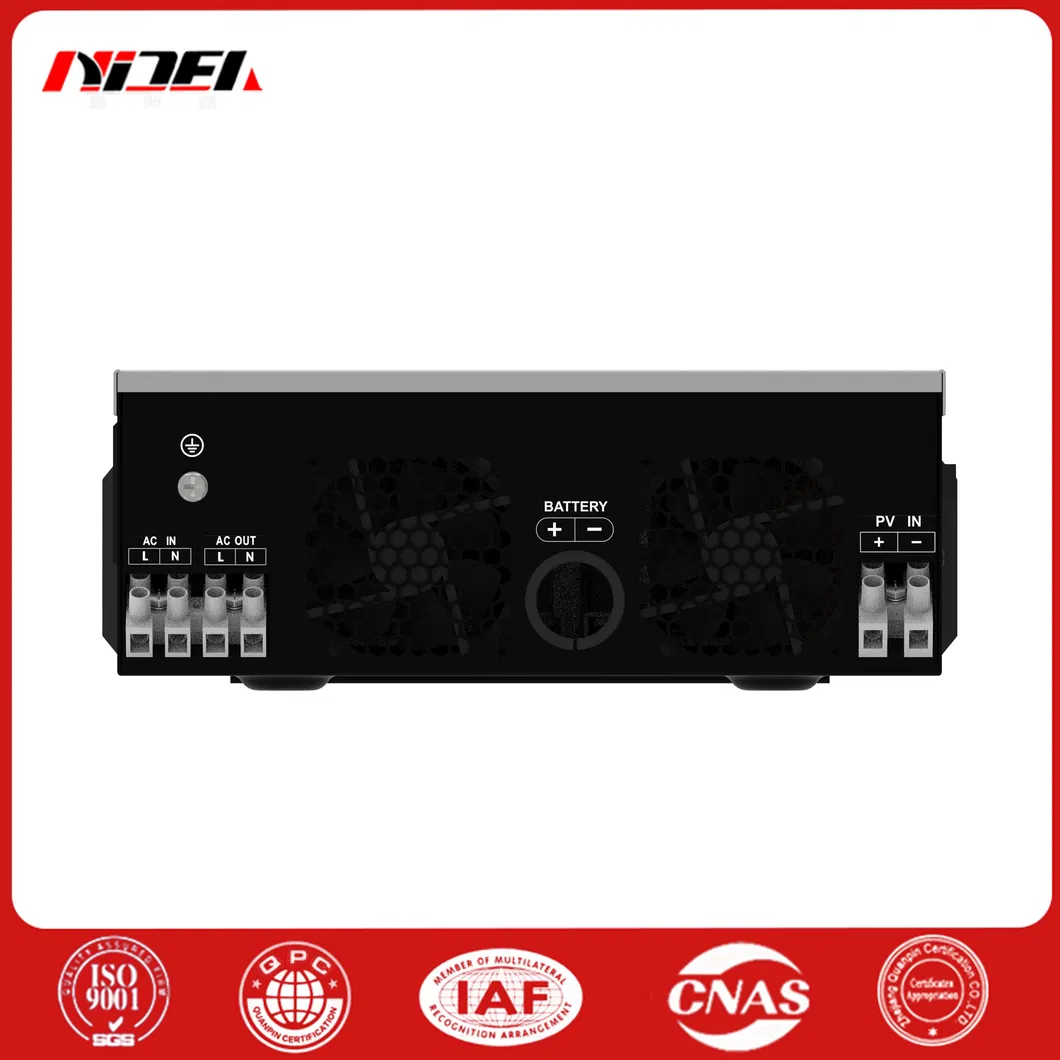

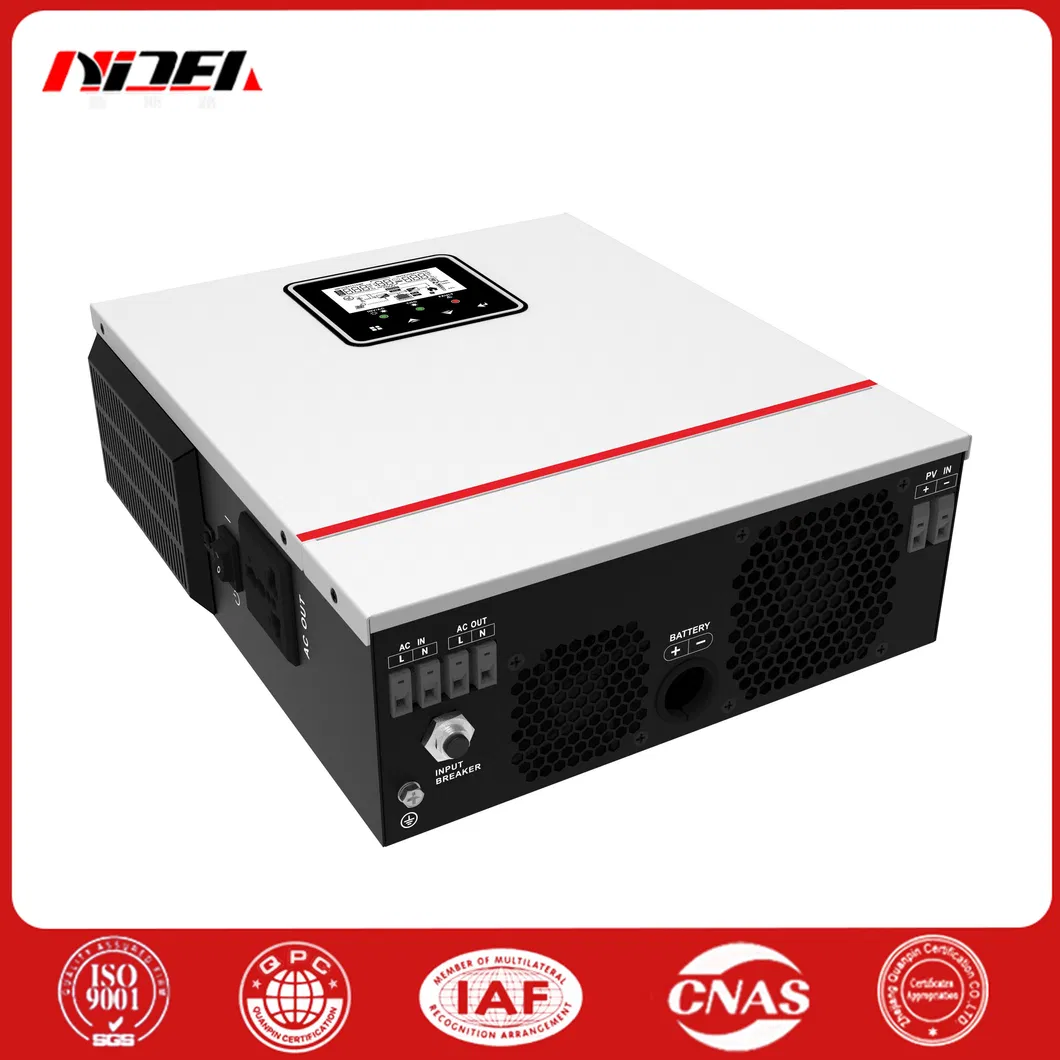

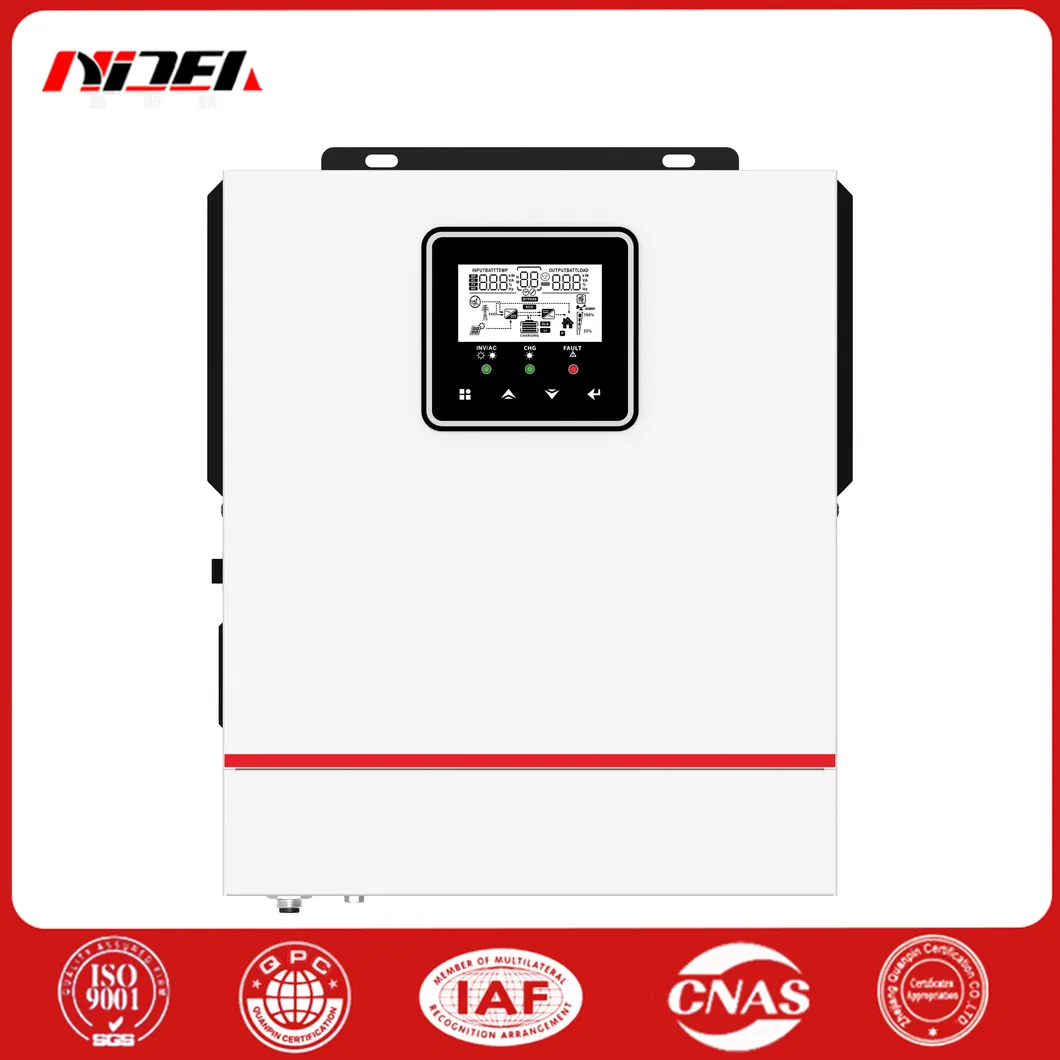

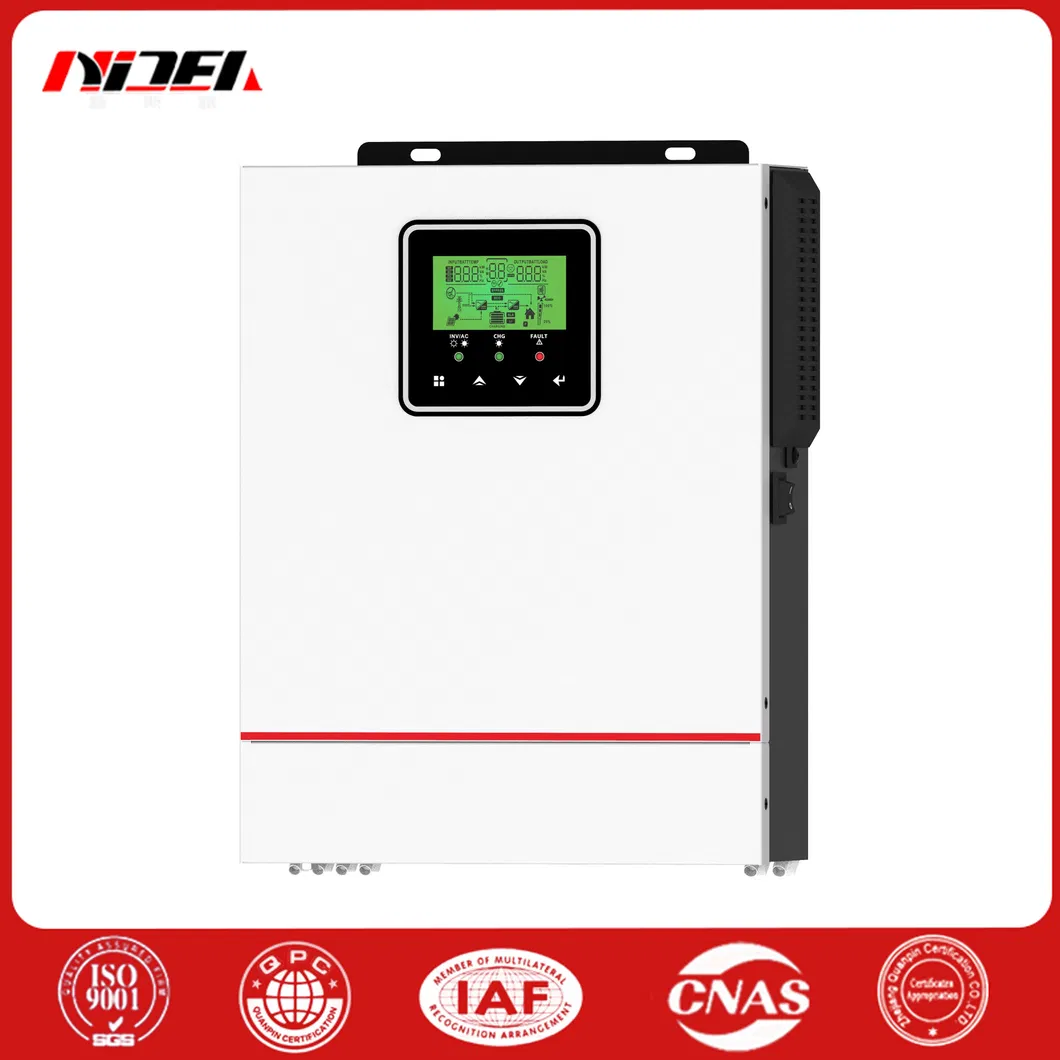

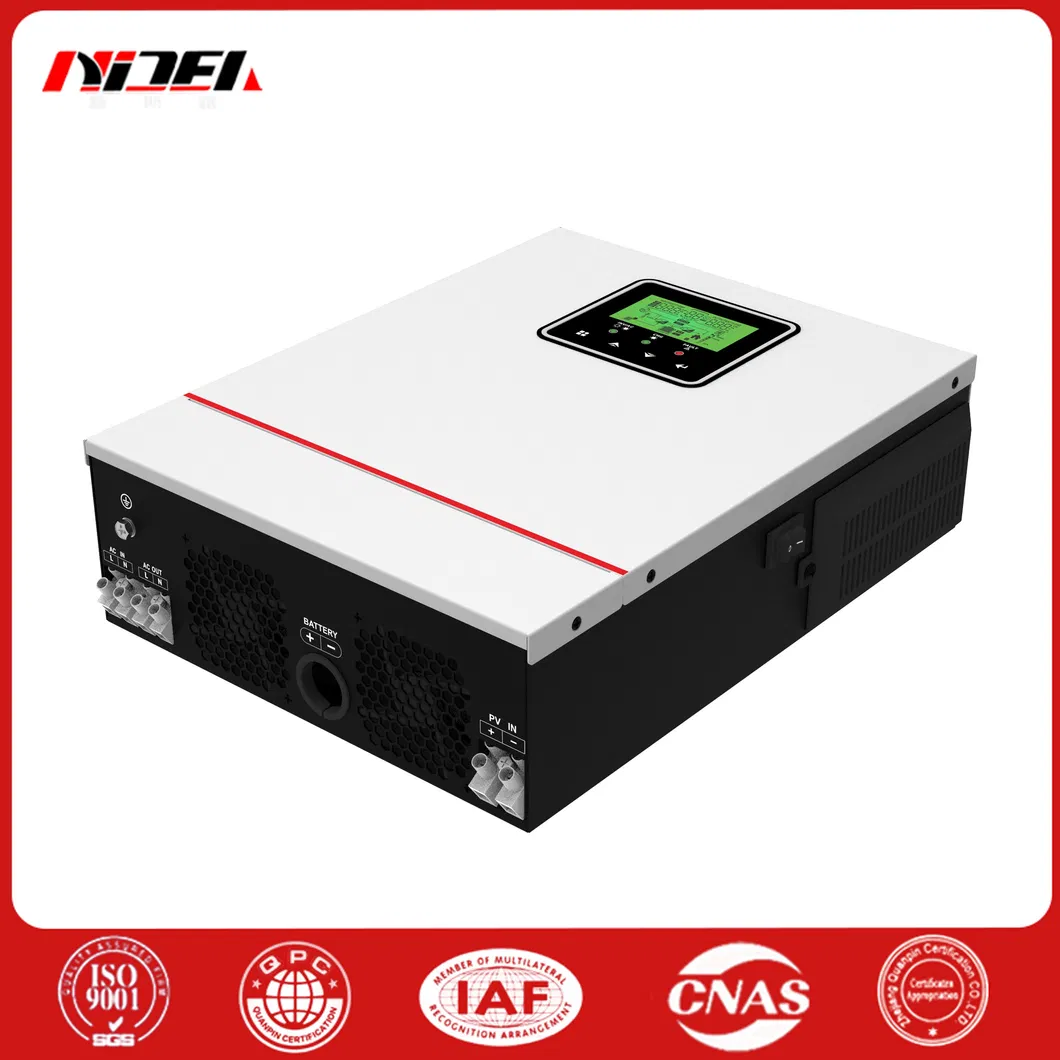

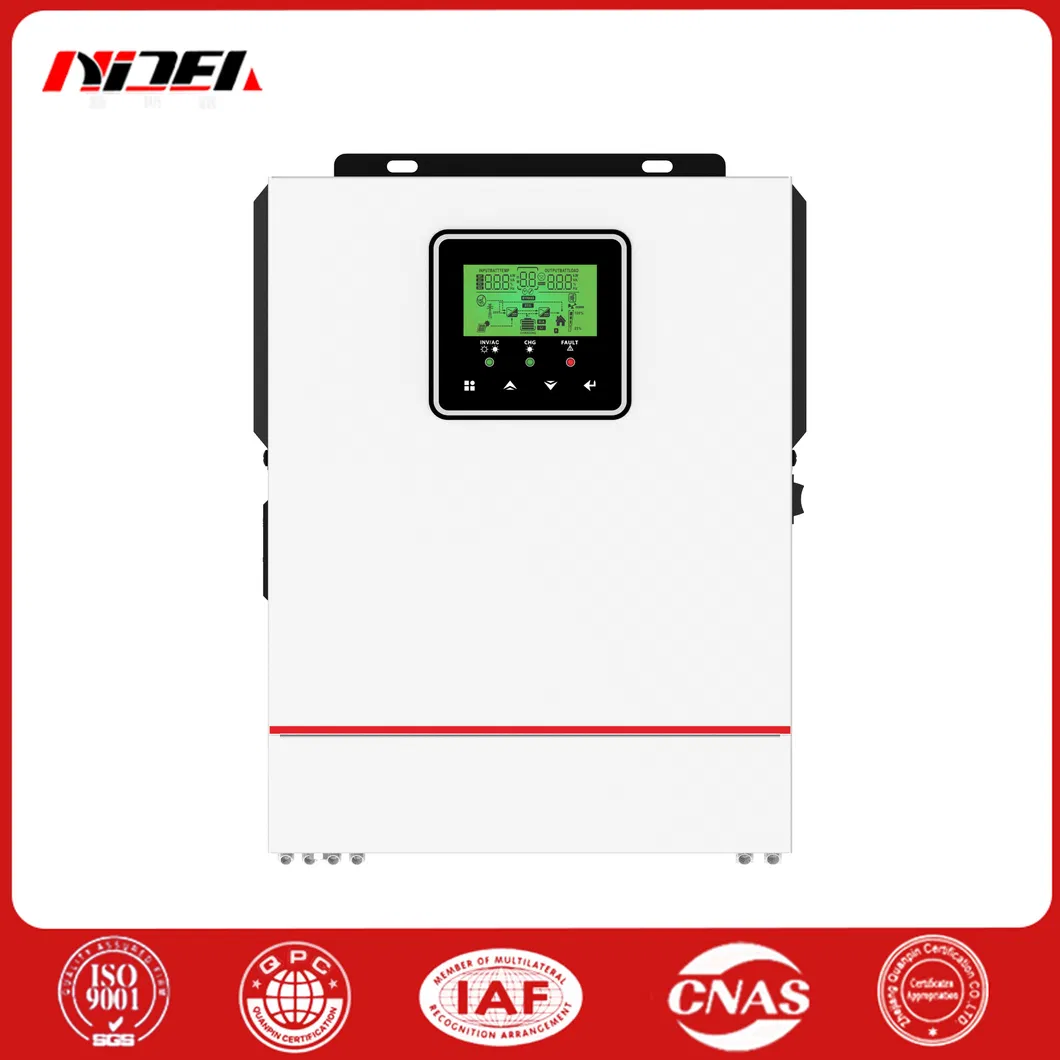

NM-ECO-3.6KW PLUS Photovoltaic Inverter Switching Grid Electromagnetic Inverter
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available forIOS and Android
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Dual communication ports for Battery communication
and Wifi communication
Built-in 120A MPPT Solar charge:max6200W (for 3.6KW/4.2KW),max 6500W(for 6.2KW)
Built-in 80A MPPT Solar charge
max 6500W(for 3.6KW/48V)
High PV input voltage range(60~500VDC)
Built-in anti-dust kit for harsh environment
Dual output
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and Android
Inverter can run without battery
(One)-key restoration to factory Settings
Built-in Lithium battery automatic activation
Dual communication ports for Battery
communication and Wifi communication
Built-in 120A MPPT Solar charge:max6200W
(for 4.2KW),max6500W(for 6.2KW)
High PVinput voltage range(60~500VDC)
Built-in anti-dust kit for harsh environment
(Smart) battery charge design to optimize battery life
Dual output(the second load output power can be set from 20%to 70%)
>Product Data Sheet
| MODEL |
VICTOR NM-ECO-3.6KW PLUS |
VICTOR NM-ECO-4.2KW PLUS |
VICTOR NM-ECO-6.2KW PLUS |
| Phase |
1-phase |
| Maximum PV Input Power |
6200W |
6500W |
6200W |
6500W |
| Rated Output Power |
3600W/3600VA |
4200W/4200VA |
6200W/6200VA |
| Maximum Solar Charging Current |
120A |
80A 120A |
| GRID-TIE OPERATION |
|
| PVINPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| Start-up Voltage/lnitial Feeding Voltage |
60VDC/90VDC |
| MPPT Voltage Range |
60~450VDC |
| Maximum Input Current |
1/18A |
1/22A |
1/18A |
1/22A |
| GRID OUTPUT(AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Voltage Range |
195~253VAC |
| Nominal Output Current |
15.7A |
18.2A |
27.0A |
| Power Factor |
>0.99 |
| EFFICIENCY |
|
| Maximum Conversion Efficiency(DC/AC) |
98% |
| TWO LOAD OUTPUT POWER |
|
| Full Load |
3600W |
4200W |
6200W |
| Maximum Main Load |
3600W |
4200W |
6200W |
| Second Load Range |
720W-2520W |
840W~2940W |
1240W~4340W |
| Maximum Load Cut Off Voltage |
26VDC |
52VDC |
26VDC |
52VDC |
| Maximum Load Return Voltage |
27VDC |
54VDC |
27VDC |
54VDC |
| OFF-GRID OPERATION |
|
| AC INPUT |
|
| AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
| Acceptable Input Voltage Range |
90~280VACor 170~280VAC |
| Frequency Range |
50±1Hz/60±1Hz |
| Maximum AC input Current |
21.1A |
24.7A |
36.4A |
| PVINPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| MPPT Voltage Range |
60~450VDC |
| Maximum Input Current |
1/18A |
1/22A |
1/18A |
1/22A |
| BATTERY MODE OUTPUT(AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Wave Form |
Pure sine wave |
| Efficiency(DCtoAC) |
94% |
| BATTERY&CHARGER |
|
| Nominal DC Voltage |
24VDC |
48VDC |
24VDC |
48VDC |
| Maximum Solar Charging Current |
120A |
80A |
120A |
120A |
| MaximumAC Charging Current |
100A |
60A |
100A |
100A |
| Maximum Sotar+AC Charging Current |
120A |
80A |
120A |
120A |
| HYBRID OPERATION |
|
| PV INPUT(DC) |
|
| Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
| Start-up Voltage/lnitial Feeding Voltage |
90VDC/120VDC |
| MPPT Voltage Range |
60~450VDC |
| Maximum Input Current |
1/18A |
1/22A |
1/18A |
1/22A |
| GRID OUTPUT(AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Voltage Range |
195~253VAC |
| Nominal Output Current |
15.7A |
18.2A |
27.0A |
| ACINPUT |
|
| AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
| Acceptable Input Voltage Range |
90-280VACor 170-280VAC |
| Maximum AC Input Current |
21.1A |
24.7A |
36.4A |
| Maximum Charging Current |
100A |
| GENERAL |
|
| PHYSICAL |
|
| Dimension,H*W*D(mm) |
420*350*110 |
| Cartoon Dimension ,H*W*D(mm) |
500*415*180 |
| Net Weight(kgs) |
8.0 |
8.0 |
8.9 |
| Gross Weight(kgs) |
9.0 |
9.0 |
10.0 |
| INTERACE |
|
| Communication Port |
RS232/RS485/WIFI/GPRS/LITHIUM BATTERY |
| ENVIRONMENT |
|
| Humidity |
|
| Operating Temperature |
5%to 95%Relativ- 0 u~m5i0dºCity(Non~condensing) |
| STANDARD |
|
| Compliance Safety |
CE |
FAQ
Q: Are you a factory or a trading company?
A: We are a factory with a production and sales history of 10 years for AC/DC power supplies, photovoltaic inverters, and uninterruptible power supplies. We warmly welcome your visit.
Q: When is the delivery time?
A: Generally speaking, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate.
Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 10 units.
Q: How long is your warranty period?
A: We provide customers with a 2-year warranty
Q: Can you provide customized services?
A: yes. We have been involved in OEM and ODM projects since 2001.
Only in this way can we provide professional customized services to our clients.
Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.
Q: Do you conduct testing after production is completed?
A: Yes, our production engineering team will conduct testing after the goods are completed, and we will provide testing information to the customer for reference before delivery.
