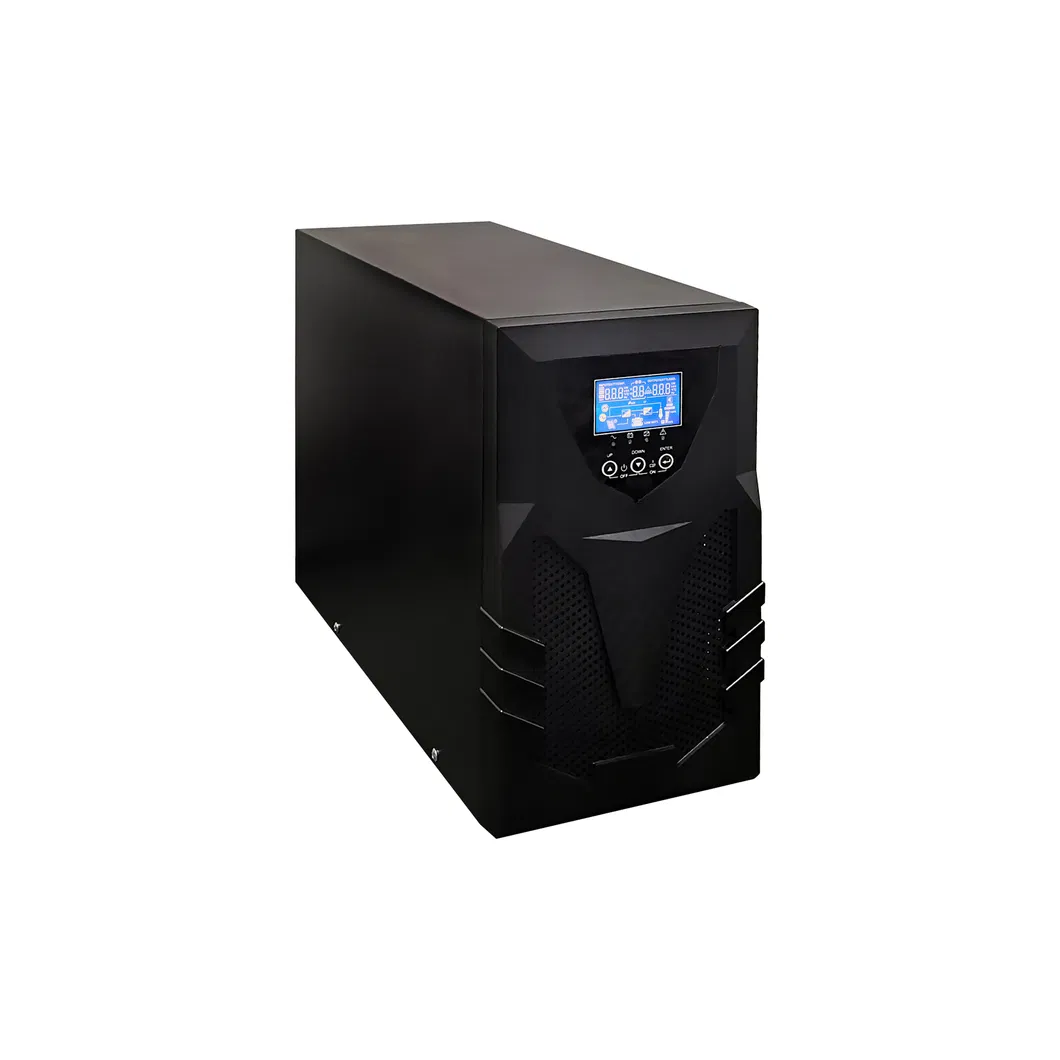

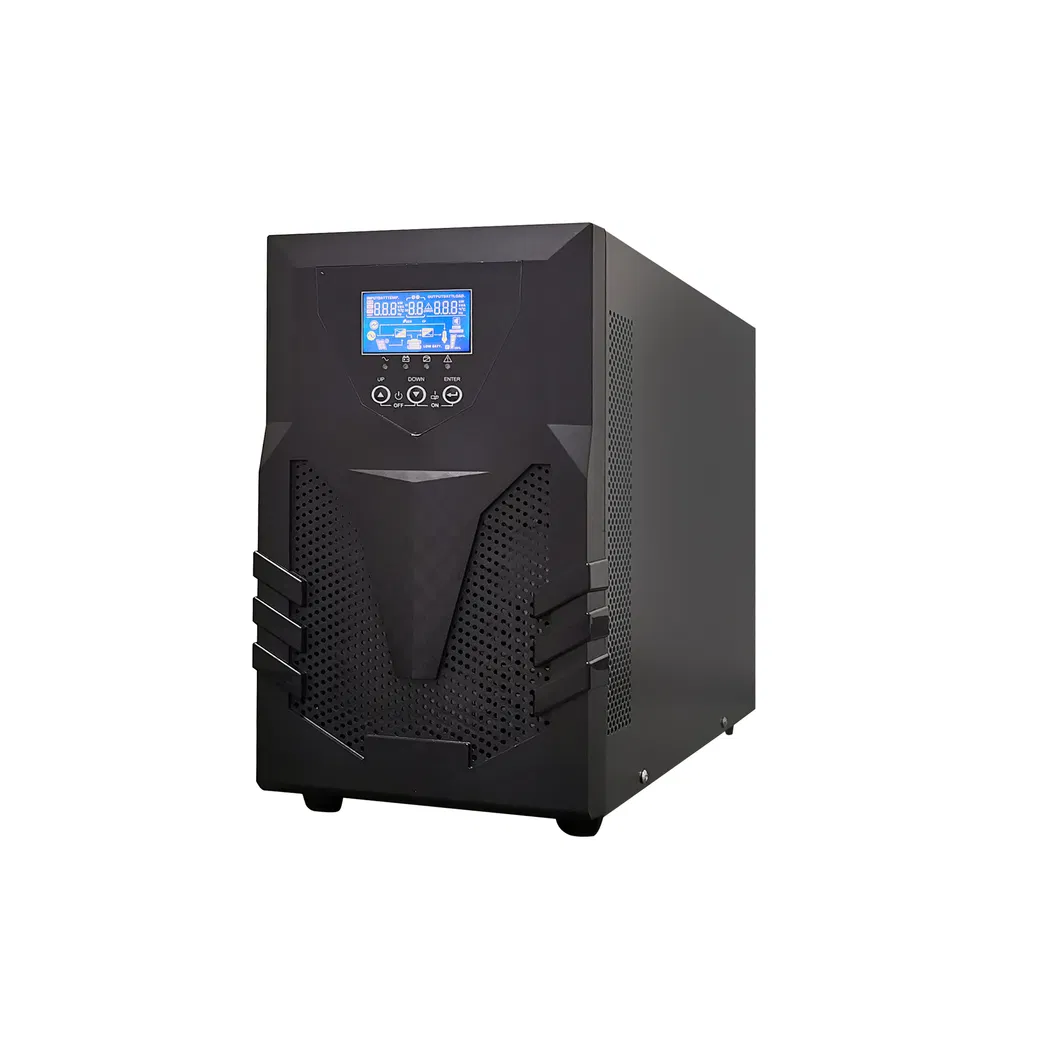

Single Phase 110VAC 120VAC No Break Online UPS Power Supply 1kVA 2kVA 3kVA 6kVA 10kVA with NEMA Outlets for South and North American Markets

ModelWall-mounted typeVertical type6KVA10KVA6KVA1OKVACapacity6KW10KW6KW10KWIn putVoltage RangeMinimum switching voltageAt 50% load, 11OVAC z3%; at 100% load, 176VAC13%Minimum recovery voltageMinimum switching voltage +10VMaximum switching voltage300VAC*3 %Maximum recovery voltageMaximum switching vo......Keywords:Single Phase 110VAC 120VAC No Break Online UPS Power Supply 1kVA 2kVA 3kVA 6kVA 10kVA with NEMA Outlets for South and North American Markets, UPS, 10ah

Send Inquiry

Product Description

Model		Wall-mounted type		Vertical type
		6KVA	10KVA	6KVA	1OKVA
Capacity		6KW	10KW	6KW	10KW
In put
Voltage Range	Minimum switching voltage	At 50% load, 11OVAC z3%; at 100% load, 176VAC13%
	Minimum recovery voltage	Minimum switching voltage +10V
	Maximum switching voltage	300VAC*3 %
	Maximum recovery voltage	Maximum switching voltage -10V
Frequency Range		40-60HZ@50HZ system/50-70HZ@60HZ system
Phase		L+ N+PE
Power Factor		100% load*0.99
Output
Output Voltage		208/220/230/240VAC
Output Voltage Accuracy		*1%
Frequency Range (synchronization range)		40-60hz@50HZsystemI50-70HZ@60HZsystem
Frequency Range (battery mode)		50hz0.1HZor60HZ0.1HZ
Overload	AC Mode	30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@ >150%Ioad
	Battery Mode	10min@102%-110%Ioad, 1min@110%-130%Ioad 10s@130%-150%Ioad, 500ms@ >150%Ioad
Current peak ratio		3:1 (Maximum)
Harmonic distortion		S2% ( linear load ) , 5%(non-linear load)
Switching time	Mains Battery	Oms
	Inverter Bypass	Oms
Effectiveness
AC Mode		95%
Battery Mode		94.8% (20pcs batteries)
Battery
Standard	Battery Number	12-16 pcs	16 pcs	12-16 pcs	16 pcs
	Charging Current	default 1A
	Charging Voltage	13.65 x NI-1%
Long Run	Battery Number	16 -20 pcs
	Charging Current	Preset: 6A-L 10%, 1-12A optional
	Charging Voltage	13.65 x N+1%
Apperance
Standard	Size Long•Width•High(mm)	38043888 (Battery pack size: 496a438 130)		384"190*730
Long Run	Size Long Width High(mm)	380"438*88		384"190*335
Environment
Operating Temperature		0 - 40°C
Operating Moisture		< 95% And no condensation
Operating Altitude		< 1000m"*
Noise		less than 50dB@1 Meter
Management
Sm artRS-232		Support Windows@2000/2003/XP/Vista/2008. Windows@7/8. Linux. Unix and MAC
0 ptional SNMP		Support for power management by SNMP administrator and web browser.
