Sp Series 3200va/3000W Photovoltaic Household Inverter

Sp Series 3200va/3000W Photovoltaic Household Inverter

SP series 3200VA/3000W photovoltaic household inverter Pure sine wave inverterProgrammable supply priority for PV,battery or GriHigh PV input voltage range(55~450VDC)Built-in Max110A(3.8KW&6.2KW)MPPT solar chargerSupport BMS communication with Lithium batteryOverload,high temperature,inv......Keywords:Sp Series 3200va/3000W Photovoltaic Household Inverter, Power Inverter, Pure Sine Wave Solar Inverter

Send Inquiry

Product Description

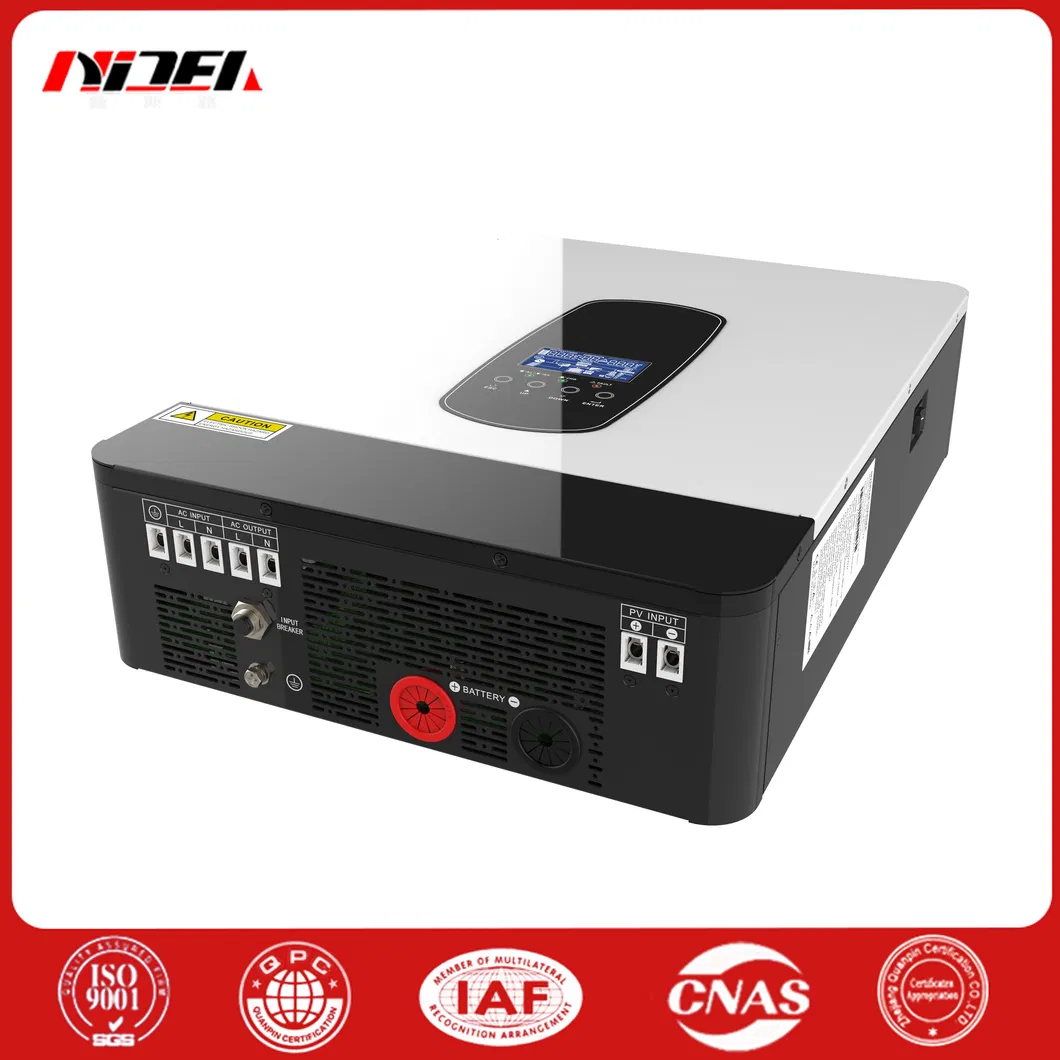

SP series 3200VA/3000W photovoltaic household inverter

Sp Series 3200va/3000W Photovoltaic Household Inverter
Pure sine wave inverter
Programmable
 supply priority for PV,battery or Gri

High  PV  input  voltage  range(55~450VDC)
Built-in  Max110A(3.8KW&6.2KW)MPPT  solar  charger
Support BMS communication with Lithium battery
Overload,high  temperature,inverter  output  short   circuit protection
Cold  start function

Intelligent fan  speed  adjustmen

Built-in  anti-dust  kit  for  harsh  environment(optional)
WIFI&GPRS available for IOS and androi
d

Sp Series 3200va/3000W Photovoltaic Household Inverter
Sp Series 3200va/3000W Photovoltaic Household Inverter
Sp Series 3200va/3000W Photovoltaic Household Inverter
Sp Series 3200va/3000W Photovoltaic Household Inverter



>Product Data Sheet
MODEL SP-2200 SP-3200 SP-4200 SP-4200 SP-7000
Rated Power 2200VA/1800W 3200VA3000W 4200VA/3800W 4200VA/3800W 7000VA/6200W
INPUT
Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range 50 Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode) 230VAC±5%
Surge Power 400VA 6400VA 8400VA 8400VA 14000VA
Transfer Time 10ms(for personal computers);20ms(for home appliances)
Waveform Pure Sine Wave
BATTERY&AC         CHARGER
Battery Voltage 12VDC 24VDC 24VDC 48VDC 48VDC
Floating Charge Voltage 13.5VDC 27VDC 27VDC 54VDC 54VDC
Overcharge Protection 15.5VDC 31VDC 31VDC 61VDC 61VDC
Maximum Charge Current 60A 80A 60A 80A
SOLAR      CHARGER
Max.PV Array Power 2000W 3000W 6000W
MPPT Range @Operating Voltage 55~450VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Charging Current 80A 110A 80A 110A
Maximum Efficiency 98%
PHYSICAL
Dimension.H*W*D(mm) 405*286*98 423*290*101 423*290*106
Net Weight(kgs) 5 55 6.8 6.9 8
Communication Interface Two communication One RS485 port for BMS ports;AnotherRS485/RS232 forremote monitoring
OPERATING        ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non~condensing)
Operating Temperature -10ºC to 55ºC
Storage Temperature -15ºC to 60ºC
 FAQ

Q:  Are you a factory or a trading company?
A:  We are a factory with a production and sales history of 10 years for AC/DC power supplies, photovoltaic inverters, and uninterruptible power supplies. We warmly welcome your visit.

Q:  When is the delivery time?
A:  Generally speaking, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate.

Q:  Do you have a minimum order quantity requirement?
A:  The minimum order quantity for most products is 10 units.

Q:  How long is your warranty period?
A:  We provide customers with a 2-year warranty

Q:  Can you provide customized services?
A:  yes. We have been involved in OEM and ODM projects since 2001.
Only in this way can we provide professional customized services to our clients.

Q:  Do you have after-sales service?
A:  Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.

Q:  Do you conduct testing after production is completed?
A:  Yes, our production engineering team will conduct testing after the goods are completed, and we will provide testing information to the customer for reference before delivery.
