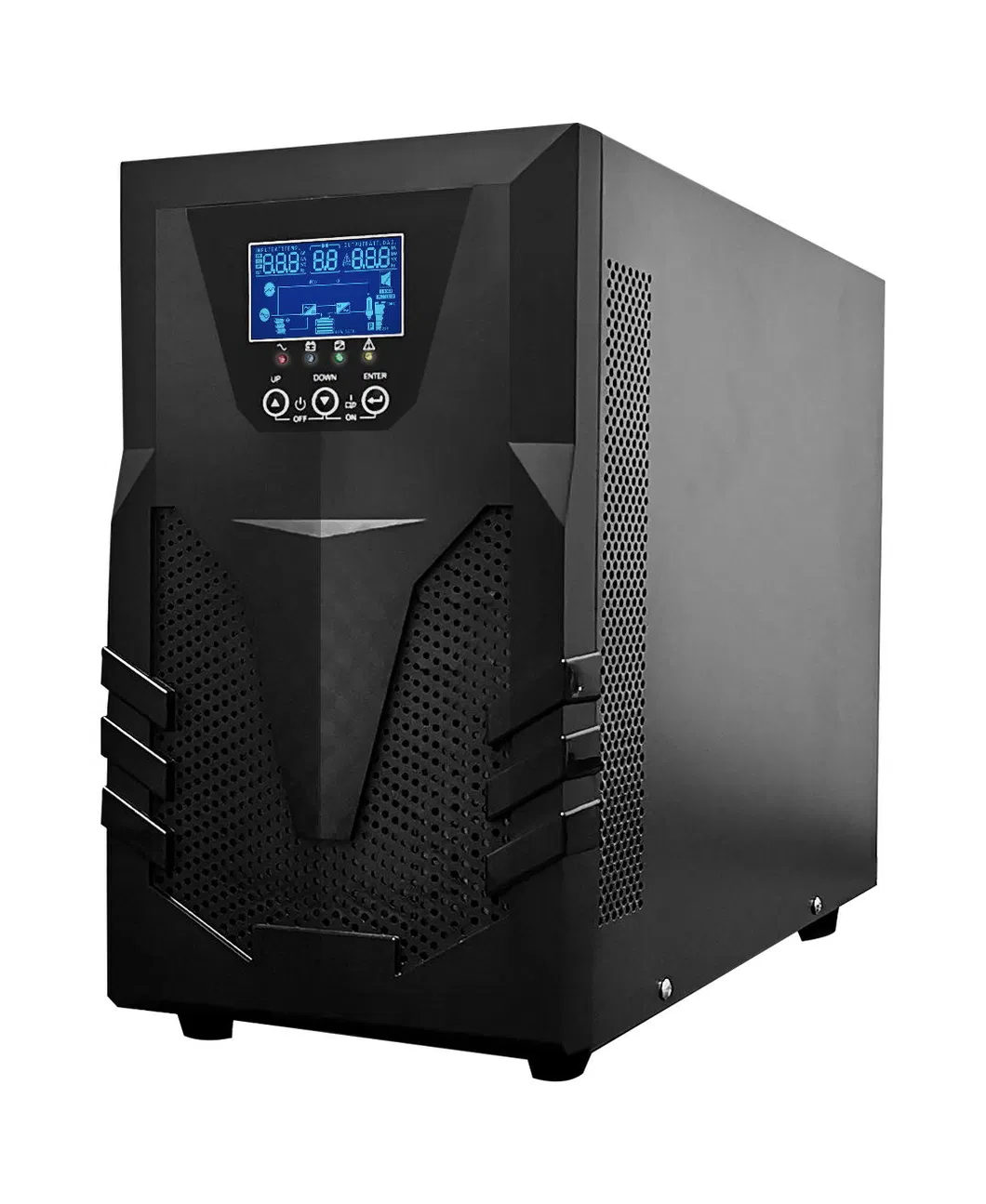

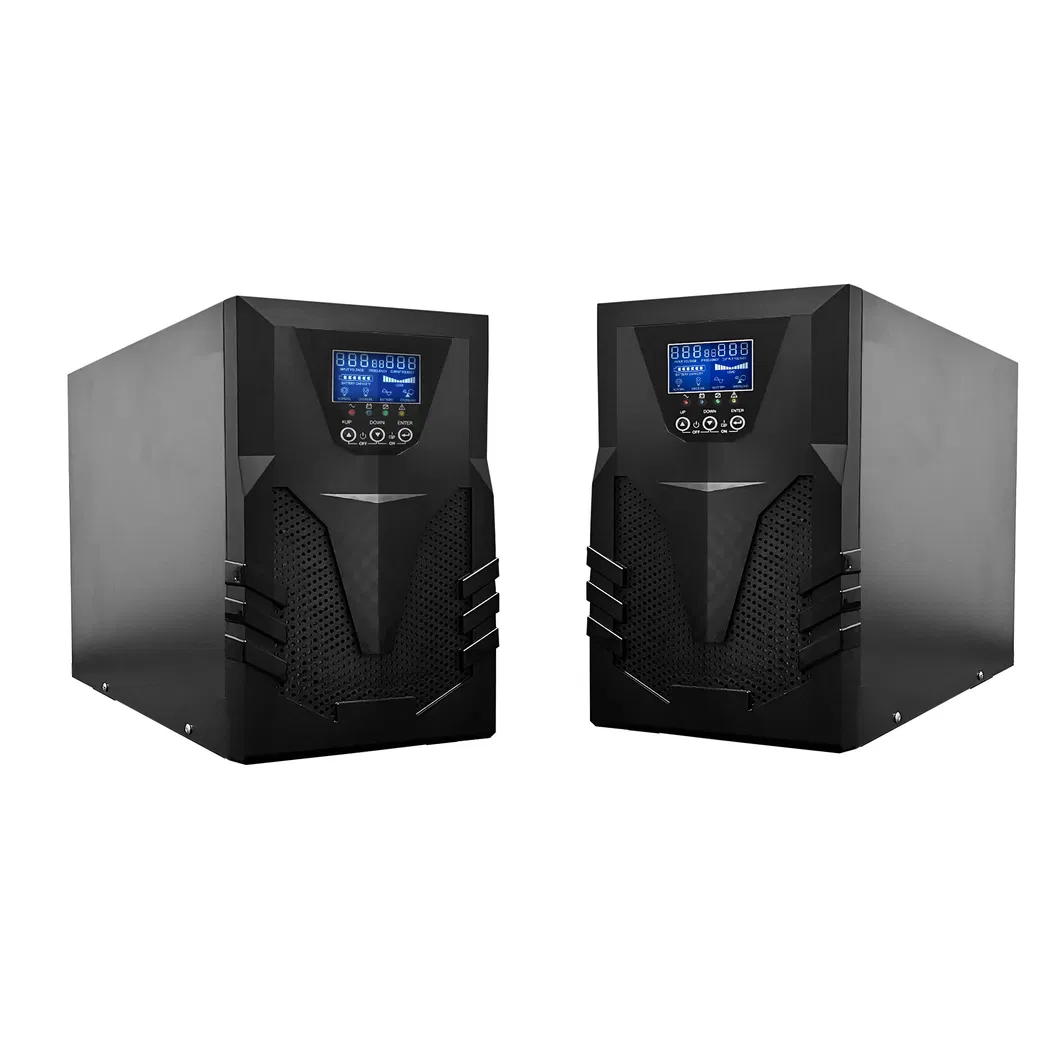

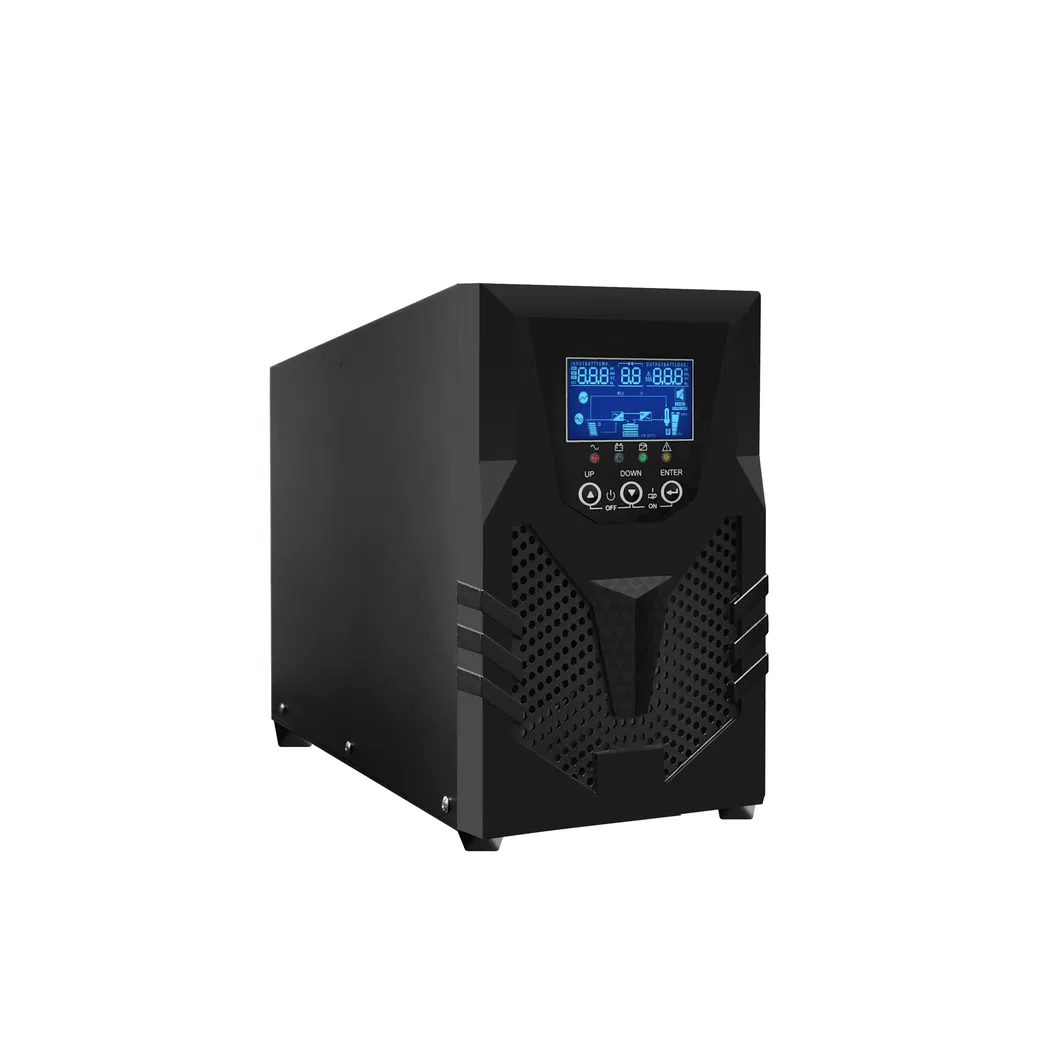

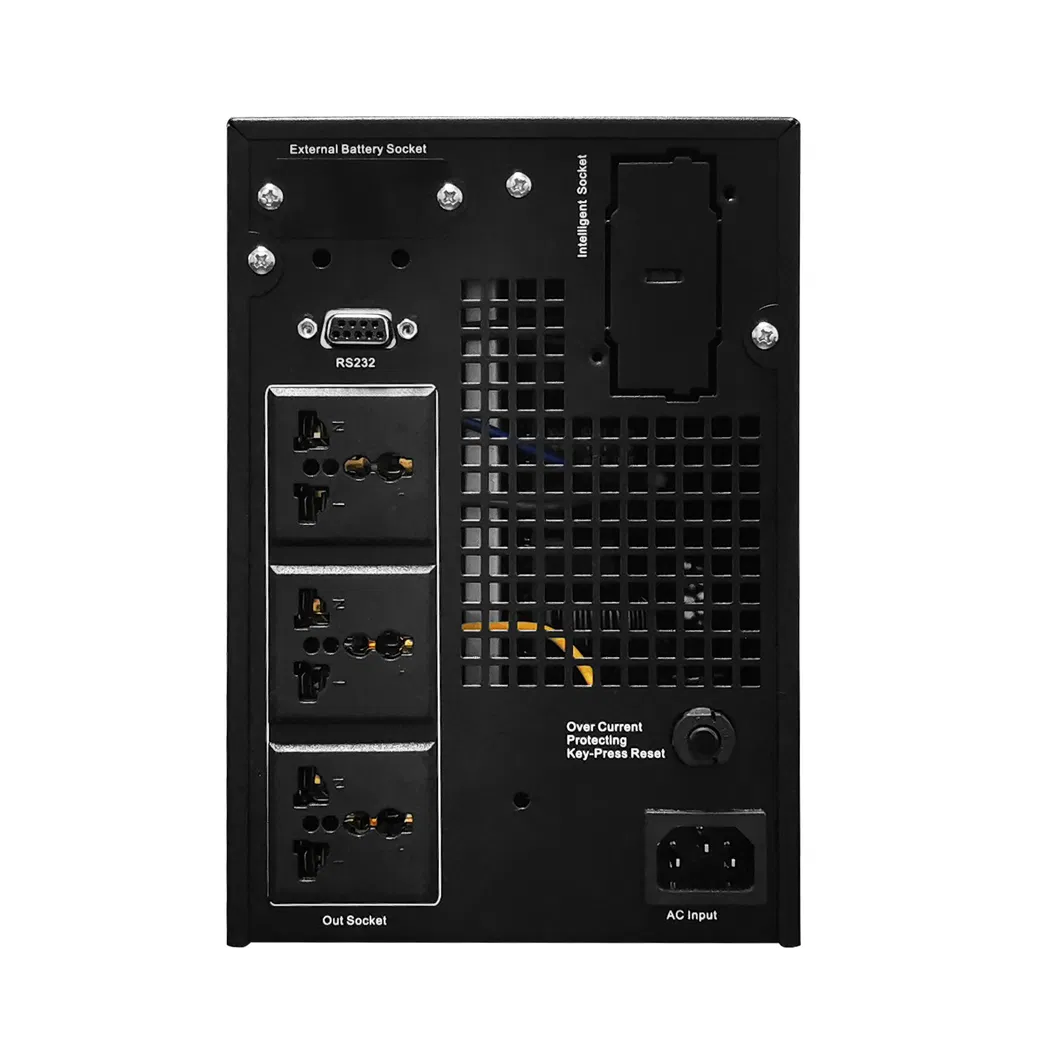

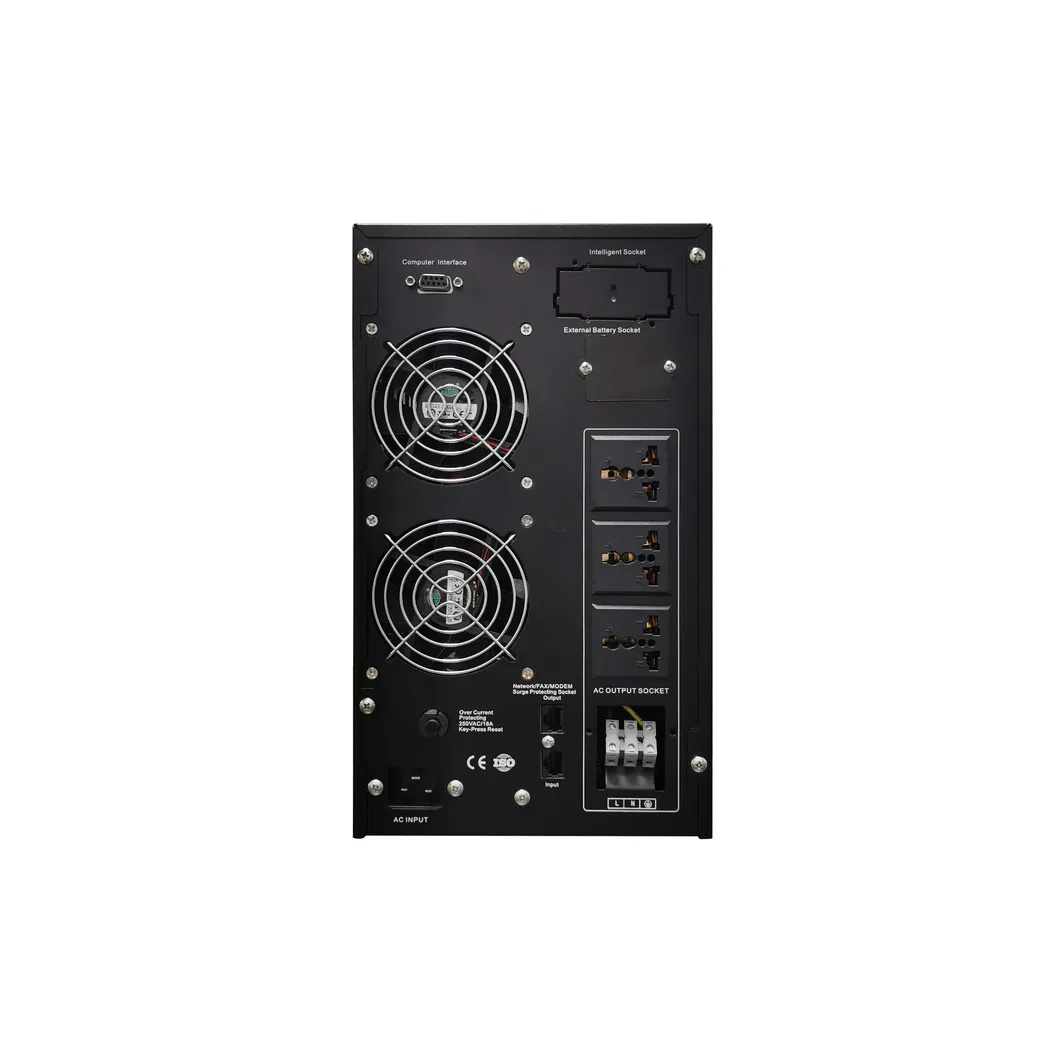

Uninterruptible Power Supply High-Frequency UPS Dual Conversion Online UPS Power Supply 1kVA-20kVA

Product Description

7. Storage and maintenance

7-1. Storage
Please charge for 7 hours before storing this product. Store it upright in a dry place.
During storage, please perform charg ing maintenance according to the following table:

Storage temperature	Charging interval	Cha rging time
-25°C - 40°C	Every 3 months	1 to 2 hours
40°C - 45°C	Every 2 months	1 to 2 hours

7-2. Maintenance

Th e U PS system uses dan g ero us voltage and can onI y be repaired by qualified maintenance personnel .

There is a danger of electric shock. Even if the main power supply is disconnected, the components in the UPS system are still connected to the battery and are dang erous.

To perform any service or maintenance, you should disconnect the battery first and confirm that there is no dangerous voltage across the bus capacitor.

Only maintenance personnel who are fully familiar with batteries and have prepared protective measures can engage in or supervise battery replacement operations. Unauthorized personnel must stay away from the battery.

There is a risk of electric shock. The battery circuit is not isolated from the mains input. Dangerous voltage may appear between the battery terminal and the ground. Before touching, please make sure there is no voltage!

The battery may cause electric shock and generate short-circuit high current. Before repairing, please remove metal objects such as watches and rings, and use tools with insulator handles and handles during repairs.

When replacing batteries, please install batteries of the same number and specifications.

Do not throw the battery into the fire, otherwise it may cause an explosion. Waste batteries should be disposed of in accordance with local regulations.

Do not disassemble or damage the battery. Once the electrolyte contained in the battery leaks, it will cause damage to the skin and eyes, and may even be toxic.
OnIy replace fuses of the same type and amperage to avoid fire. Non-professionals should not disassemble the UPS system.

Model		Wall-mounted type		Vertical type
		6KVA	10KVA	6KVA	1OKVA
Capacity		6KW	10KW	6KW	10KW
In put
Voltage Range	Minimum switching voltage	At 50% load, 11OVAC z3%; at 100% load, 176VAC13%
	Minimum recovery voltage	Minimum switching voltage +10V
	Maximum switching voltage	300VAC*3 %
	Maximum recovery voltage	Maximum switching voltage -10V
Frequency Range		40-60HZ@50HZ system/50-70HZ@60HZ system
Phase		L+ N+PE
Power Factor		100% load*0.99
Output
Output Voltage		208/220/230/240VAC
Output Voltage Accuracy		*1%
Frequency Range (synchronization range)		40-60hz@50HZsystemI50-70HZ@60HZsystem
Frequency Range (battery mode)		50hz0.1HZor60HZ0.1HZ
Overload	AC Mode	30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@ >150%Ioad
	Battery Mode	10min@102%-110%Ioad, 1min@110%-130%Ioad 10s@130%-150%Ioad, 500ms@ >150%Ioad
Current peak ratio		3:1 (Maximum)
Harmonic distortion		S2% ( linear load ) , 5%(non-linear load)
Switching time	Mains Battery	Oms
	Inverter Bypass	Oms
Effectiveness
AC Mode		95%
Battery Mode		94.8% (20pcs batteries)
Battery
Standard	Battery Number	12-16 pcs	16 pcs	12-16 pcs	16 pcs
	Charging Current	default 1A
	Charging Voltage	13.65 x NI-1%
Long Run	Battery Number	16 -20 pcs
	Charging Current	Preset: 6A-L 10%, 1-12A optional
	Charging Voltage	13.65 x N+1%
Apperance
Standard	Size Long•Width•High(mm)	38043888 (Battery pack size: 496a438 130)		384"190*730
Long Run	Size Long Width High(mm)	380"438*88		384"190*335
Environment
Operating Temperature		0 - 40°C
Operating Moisture		< 95% And no condensation
Operating Altitude		< 1000m"*
Noise		less than 50dB@1 Meter
Management
Sm artRS-232		Support Windows@2000/2003/XP/Vista/2008. Windows@7/8. Linux. Unix and MAC
0 ptional SNMP		Support for power management by SNMP administrator and web browser.

Tech nical parameters

Model		Wall-mounted type			Vertical type
		1KVA	2KVA	3KVA	1KVA	2KVA	3KVA
Capacity		1KW	2KW	3KW	1KW	2KW	3KW
Input
Voltage Range	Minimum switching voltage	At 50% load, 11OVAC +3%; at 100% load, 176VAC+3 %
	Minimum recovery voltage	Minimum switching voltage +10V
	Maximum switching voltage	300VACI3 %
	Maximum recovery voltage	Maximum switching voltage -10V
Frequency Range		40-60HZ@50HZ system/50-70HZ@60HZ system
Phase		L+ N+PE
Power Factor		100% load z0.99
Output
Output Voltage		208/220/230/240VAC
Output Voltage Accuracy		I1%
Frequency Range (synchronization range)		40-60hz@50HZsystem/50-70HZ@60HZsystem
Frequency Range (battery mode)		50hz+0.1 HZor60HZ+0.1 HZ
Overload	AC Mode	30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@>150 %Ioad
	Battery Mode	10min@102%-110%Ioad, 1min@110%-130%load 10s@130%-150%Ioad, 500ms@> 150 %Ioad
Current peak ratio		3:1 (Maximum)
Harmonic distortion		2% ( linear load ) , 5%(non-linear load)
Switching time	Mains Battery	Oms
	Inverter Bypass	0ms
Effectiveness
AC Mode		95%
Battery Mode		94.8% (20pcs batteries)
Battery
Standard	Battery Number	2 pcs	4 pcs	6 pcs	2 pcs	4 pcs	6 pcs
	Charging Current	default 1A
	Charging Voltage	13.65 x NI1 %
Long Run	Battery Number	3 pcs	6 pcs	8 pcs	3 pcs	6 pcs	8 pcs
	Charging Current	Preset: 6A110%, 1-12A optional
	Charging Voltage	13.65x N*1%
Apperance
Standard	Size Long Width High(mm)	310"438"88	380"438"88	506"438"88	284"145"213	398"145"213	450"192"335
Long Run	Size Long Width High(mm)	310"438"88	380"438"88	380"438"88	284"145"213	398"145"213	398"145"213
Environment
Operating Temperature		0-40°C
Operating Moisture		< 95%And no condensation
Operating Altitude		< 1000m""
Noise		less than 50dB@1Meter
Management
SmartRS-232		Suppon Windows@2000/2003/XP/Vista/2008. Windows@7/8, Linux. Unix and MAC
Optional SNMP		Support for power management by SNMP administrator and web browser.

"When the output voltage is set to 208VAC, the output power will be reduced to 90%.
"*If the UPS is installed and used in an environment with an altitude of more than 1000 meters, the output power should be calculated to decelerate by 1% per 100 meters.
"""Please understand that there will be no notice when product specifications are changed.
